Conveying Gear 輸送齒輪

Spur Gear | 45T | Ø94mm x t80mm Material: Polyurethane (PU) 95A + Steel SUS Used in conveying belt. High quality hardness, tensile strength, compressive strength, tear strength, impact resistance, abrasion resistance, low noise and no degumming. Available to attach a variety of metal or bearing specifications. Application: Electronics, Semiconductor Machinery. Alternative Materials: Aluminum, Copper, Steel, Iron, Nylon (MC, PA). 正齒 | 45T | Ø94mm x t80mm 材質：優力膠 (PU) 95A + SUS 鋼 用於輸送帶。高品質硬度、拉伸強度、抗壓強度、抗衝擊性、耐磨性、靜音、不脫膠和撕裂強度等特色。可承製多種金屬或軸承規格。 適用產業：電子科技、半導體機械。 替代料：鋁、銅、鋼、鐵、尼龍 (MC、PA)。

Gear

齒輪

Conveying Gear

輸送齒輪

Conveying Gear 輸送齒輪

Conveying Guide Wheel 面板輸送導輪

Ø60mm x t25mm | Inner Diameter Ø15mm Material: Polyurethane (PU) 70A + Aluminum 6061-T6 Applied for conveying high-tech panels during the etching process (glass substrate for LCD, touch glass substrate and protective glass substrate). Application: Fitness Equipment, Mechanical Machinery, Electronics, Semiconductor Machinery. Alternative Materials: Tests required prior material substitution. Ø60mm x t25mm | 內徑 Ø15mm 材質：優力膠 (PU) 70A + 鋁 6061-T6 蝕刻程序中用來輸送高科技面板(液晶用玻璃基板、觸控用玻璃基板及保護玻璃基板)。 適用產業：運動器材、五金機械、電子科技、半導體機械。 替代料：替換材料前需要先進行測試分析。

Guide Wheel

導輪

Conveying Guide Whee

面板輸送導輪

Conveying Guide Wheel 面板輸送導輪

Aluminum Side Cover 鋁側邊護蓋

ℓ160mm x t10mm Material: Alumminum 6061-T6 Used as mechanical spindle fixture. Light weight, high strength, corrosion resistant, excellent thermal conductivity, excellent electrical conductivity, non-magnetic, elastic, non-flammable, suitable for extremely cold areas, recyclable, easy to process, economical. Application: Mechanical Machinery, Electronics, Semiconductor Machinery, Medical Machinery, Food Processing Machinery. Alternative Materials: Aluminum, Copper, Steel, Iron, Nylon (MC, PA). ℓ160mm x t10mm 材質：鋁 6061-T6 用於機械固定心軸。重量輕，強度高，耐腐蝕，優異的導熱性，優異的導電性，非磁性，彈性，不可燃，適用於極冷區域，可回收，易加工，經濟。 適用產業：五金機械、電子科技、半導體機械、醫療機械、食品加工機械。 替代料：鋁、銅、鋼、鐵、尼龍 (MC、PA)。

Aluminum Side Cover

鋁側邊護蓋

Aluminum Side Cover 鋁側邊護蓋

Telescopic Cover L Shape Roller 伸縮護蓋L型滾輪

L-Shape 34mm x 10mm x 30mm | Roller Wheel Ø10mm Material: Nylon PA6 + 15% Glass Fiber + POM + Steel SS41 Used in CNC machinery as retractable cover plate. Low noise under high speed application with automatic sliding mechanism. Application: Mechanical Machinery. Alternative Materials: Aluminum, Copper, Steel, Iron. L-型 34mm x 10mm x 30mm | 滑輪 Ø10mm 材質：尼龍 PA6 + 15% 玻璃纖維 + POM + 鋼 SS41 CNC伸縮護蓋板。低噪音、加裝滑動機構，可高速應用。 適用產業：五金機械。 替代料：鋁、銅、鋼、鐵。

L Shape Roller

L型滾輪

Telescopic Cover

伸縮護蓋

Cover Slider

伸縮護蓋滑塊

Slider

滑塊

Telescopic Cover L Shape Roller 伸縮護蓋L型滾輪

Non-Contact Magnetic Coupling 非接觸式磁性齒輪

Ø35mm x ℓ34mm | Inner Diameter Ø15mm Material: Aluminum 6061-T6 + Magnet + Brass It is a non-contact type transmission drive that has no contact portion for power transmission. Used mainly in high-tech semiconductor panel conveying system where low noise, low vibration, no wear and high precision is required. Fully customizable. Application: Mechanical Machinery, Electronics, Automotive, Semiconductor Machinery, Medical Machinery, Food Processing Machinery, Nuclear, Chemical, Aerospace. Alternative Materials: Tests required prior material substitution. Ø35mm x ℓ34mm | 內徑 Ø15mm 材質：鋁 6061-T6 + 磁鐵 + 黃銅 它是一種無接觸型的傳動裝置。無接觸面而帶動轉。主要用於要求低噪音，低振動，無磨損和高精度的科技半導體面板輸送系統。可客製化規格。 適用產業：五金機械、電子科技、汽車零配件、半導體機械、醫療機械、食品加工機械、核工、化工、航太。 替代料：替換材料前需要先進行測試分析。

Coupling

齒輪

聯軸器

Magnetic Coupling

磁性聯軸器

Magnetic Gear

磁性齒輪

Non-Contact Magnetic Coupling 非接觸式磁性齒輪

Shen Ding Industrial | Corporate Introduction

Shen Ding_Company Profile_Full_EN.mp4

Spur Gear 正齒輪

Spur Gear | M2 x 60T | Ø124mm x t20mm Material: MC901 + SS41 (Electroless Nickel Treatment) Excellent sliding ability, high abrasion resistance, good toothing ability, good machinability, dimensional stability, applicable in in speed and steering variations, low noise and low residual stress. Application: Fitness Equipment, Mechanical Machinery, Electronics, Pneumatic Tools, Painting Equipment Alternative Materials: Aluminum, Copper, Steel, Iron, Engineering Plastics, PE, UPE, POM 正齒 | M2 x 60T | Ø124mm x t20mm 材質：尼龍 (MC) 901 + 鋼 SS41 (無電解鎳處理) 極佳滑動性、高耐磨，良好的咬合能力，良好的機械加工性，尺寸穩定性、具有改變轉速及轉向的作用、無聲低噪音之優點和較低的殘餘應力。 適用產業：運動器材、五金機械、電子科技、氣動工具、塗裝設備。 替代料：鋁、銅、鋼、鐵、工程塑料、PE、UPE、POM。

Gear

齒輪

Spur Gear

正齒輪

Spur Gear 正齒輪

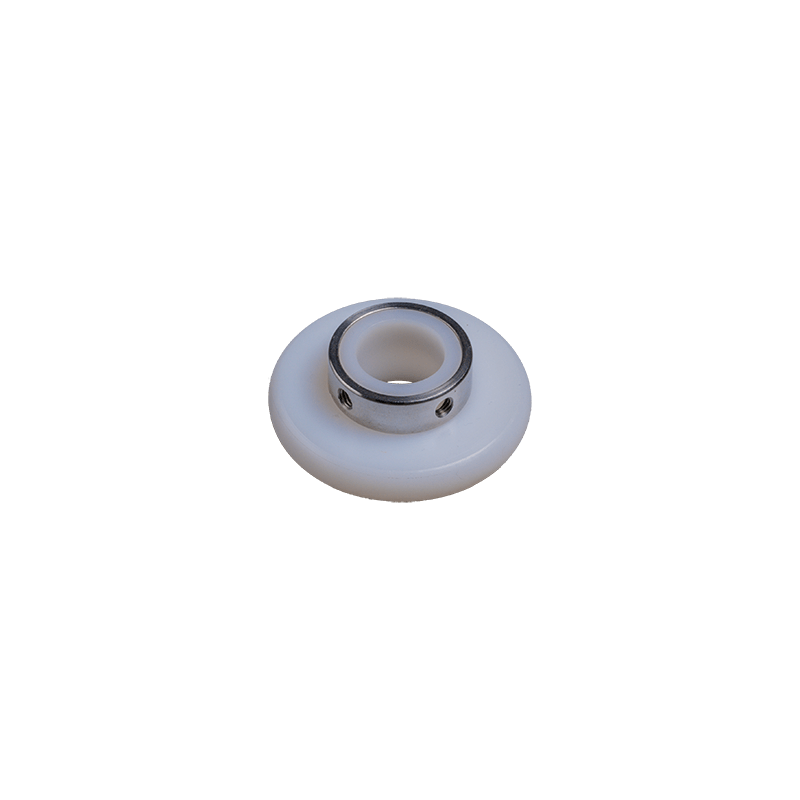

PEEK Roller Wheel 滾輪

Ø50mm x t20mm | Inner Diameter Ø20mm Material: PEEK + Steel + Screw PEEK plastic made roller wheel with fastening screws are used for conveying high-tech panels in industrial ovens. Application: Electronics, Semiconductor Machinery, Nuclear, Chemical, Aerospace. Alternative Materials: PE, UPE, Teflon (FEP, PTFE, PVDF). Ø50mm x t20mm | 內徑 Ø20mm 材質：PEEK + 鋼 + 螺絲 耐高溫耐高速轉動，用於烤箱內輸送高科技面板。 適用產業：電子科技、半導體機械、核工、化工、航太。 替代料：PE、UPE、鐵氟龍 (FEP、PTFE、PVDF)。

Roller Wheel

滾輪

PEEK Roller Wheel

PEEK滾輪

PEEK Roller Wheel 滾輪

SHEN DING 神鼎工業

Bevel Gear 傘型齒輪

Bevel Gear | M3 x 18T Material: POM Used widely in the transmission drive machinery. Features speed and rotation direction changing. Has good mechanical strength, excellent abrasion resistance, and low noise capability. Application: Mechanical Machinery, Electronics, Semiconductor Machinery, Food Processing Machinery Alternative Materials: PEEK, Teflon (FEP, PTFE, PVDF) 傘型齒 | M3 x 18T 材質：POM 是非常廣泛的傳動件，具有改變轉速及轉向的作用，良好機械強度・耐磨耗性極佳，擁有無聲低噪音之優點。 適用產業：五金機械、電子科技、半導體機械、食品加工機械。 替代料：PEEK、鐵氟龍 (FEP、PTFE、PVDF)。

Gears

齒輪

Bevel Gear

傘型齒輪

Bevel Gear 傘型齒輪

PEEK Guider 導輪

Ø40mm x t12mm | Inner Diameter Ø12 Material: PEEK PEEK guide wheel with the traits of chemical resistance, hydrolysis, high temperature and pressure resistance can be applied to different machinery and many kinds of industries. Good mechanical properties at high temperatures, UL 94 V-0 flammability rating, very low smoke and toxic gas emissions, best suitable for high precision conveyance. Application: Mechanical Machinery, Electronics, Automotive, Semiconductor Machinery, Medical Machinery, Food Processing Machinery, Nuclear, Chemical, Aerospace Alternative Materials: Teflon (FEP, PTFE, PVDF) Ø40mm x t12mm | 內徑 Ø12 材質：PEEK 用於精密產品的輸送。高品質硬度、耐化學腐蝕、耐水解、耐高溫高壓，高溫下具有良好機械性能，UL 94 V-0燃性等級，極低煙霧及有毒氣體排放。 適用產業：五金機械、電子科技、汽車零配件、半導體機械、醫療機械、食品加工機械、核工、化工、航太。 替代料：鐵氟龍 (FEP、PTFE、PVDF)。

Guider Wheel

導輪

PEEK Guider Wheel

PEEK導輪

PEEK Guider 導輪

自動化零配件解決方案

自動化零配件解決方案

Dust Proof Bushing 防塵套

Ø140mm x t23mm | Inner Diameter Ø77mm Material: Polyurethane (PU) 90A Used in mechanical or high-tech machinery where dust protection is required, it features good abrasion resistance, good tear resistance, high tensile strength and elongation at break, excellent bending strength, low temperature and oil resistance, low long-term compression deformation rate. Application: Mechanical Machinery, Electronics, Semiconductor Machinery, Food Processing Machinery. Alternative Materials: Tests required prior material substitution. Ø140mm x t23mm | 內徑 Ø77mm 材質：優力膠 (PU) 90A 耐磨性佳、抗撕裂性佳、抗張強度及斷裂延伸率大、彎曲強度優秀、耐低溫耐油、長期壓縮變形率低。 適用產業：五金機械、電子科技、半導體機械、食品加工機械。 替代料：替換材料前需要先進行測試分析。

Bushing

防塵套

Dust Proof Bushing

Dust Proof Bushing 防塵套

Semiconductor Conveying Wheel 半導體輸送倫

Ø60mm x t20mm | Inner Diameter Ø20 Material: POM + Steel Mostly used in LCD Panel conveying structures that require precise tolerance, high-quality hardness, tensile strength, compressive strength, impact resistance, abrasion resistance, and noise reduction. Application: Electronics, Semiconductor Machinery, Nuclear, Chemical, Aerospace Alternative Materials: PE, UPE, Teflon (FEP, PTFE, PVDF) Ø60mm x t20mm | 內徑 Ø20 材質：POM + 鋼 多數用於要求高精密公差、高優質硬度、抗拉強度、抗壓強度、抗衝擊、耐磨及低噪音的液晶面板輸送結構。 適用產業：電子科技、半導體機械、核工、化工、航太。 替代料：PE、UPE、鐵氟龍 (FEP、PTFE、PVDF)。

Conveying Wheel

輸送倫

Semiconductor Wheel

半導體輸送倫

Semiconductor Conveying Wheel 半導體輸送倫

Positioning Screw Pole 定位螺桿

Ø45mm x ℓ200mm Material: POM Used for food processing automation machinery and equipment. Application: Mechanical Machinery, Electronics, Painting Equipment, Semiconductor Machinery, Medical Machinery, Food Processing Machinery, Nuclear, Chemical. Alternative Materials: PE, UPE, Teflon (FEP, PTFE, PVDF). Ø45mm x ℓ200mm 材質：POM 用於食品自動化機械設備。 適用產業：五金機械、電子科技、塗裝設備、半導體機械、醫療機械、食品加工機械、核工、化工。 替代料：PE、UPE、鐵氟龍 (FEP、PTFE、PVDF)。

Screw Pole

螺桿

Positioning Screw

定位螺桿

Positioning Screw Pole 定位螺桿

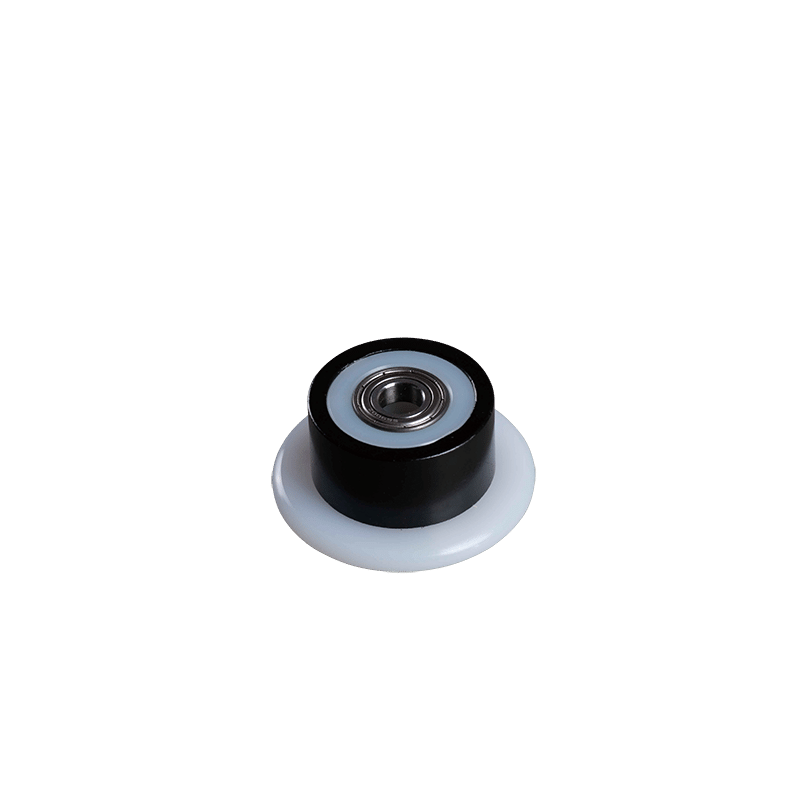

Magnetic Roller 磁性滾輪

Ø60mm x t27mm | Wheel t6mm Material: POM + Magnet Ring + 56900Z Bearing Mostly used in LCD Panel conveying structures that require precise tolerance, high-quality hardness, tensile strength, compressive strength, impact resistance, abrasion resistance, and noise reduction. Also features a magnetic ring. Application: Electronics, Semiconductor Machinery, Nuclear, Chemical, Aerospace. Alternative Materials: PE, UPE, Teflon (FEP, PTFE, PVDF). Ø60mm x t27mm | 輪 t6mm 材質：POM + 磁環 + 56900Z 軸承 多數用於要求高精密公差、高優質硬度、抗拉強度、抗壓強度、抗衝擊、耐磨及低噪音的液晶面板輸送結構。含磁環設計特徵。 適用產業：電子科技、半導體機械、核工、化工、航太。 替代料：PE、UPE、鐵氟龍 (FEP、PTFE、PVDF)。

Roller

滾輪

Magnetic Roller

磁性滾輪

Magnetic Roller 磁性滾輪

PEEK Roller Wheel 滾輪

Ø40mm x t28mm | Inner Diameter Ø15mm Material: PEEK High temperature resistance and high speed rotation, used for conveying high-tech panels in industrial ovens. Application: Electronics, Semiconductor Machinery, Nuclear, Chemical, Aerospace. Alternative Materials: PE, UPE, Teflon (FEP, PTFE, PVDF). Ø40mm x t28mm | 內徑 Ø15mm 材質：PEEK 耐高溫耐高速轉動，用於烤箱內輸送高科技面板。 適用產業：電子科技、半導體機械、核工、化工、航太。 替代料：PE、UPE、鐵氟龍 (FEP、PTFE、PVDF)。

Roller Wheel

滾輪

PEEK Roller Wheel

PEEK滾輪

PEEK Roller Wheel 滾輪

Spiral Gear 螺旋齒輪

Spiral Gear | Ø40mm x t35mm | Inner Diameter Ø15 | M2 x 13TModel Material: POM + Steel Spiral gear with self-lubricating feature and wear resistance is specially designed for high performance conveyor belt. Application: Mechanical Machinery, Electronics, Semiconductor Machinery, Medical Machinery, Food Processing Machinery Alternative Materials: Aluminum, Copper, Steel, Iron, Nylon (MC, PA), PEEK 螺旋齒輪 | Ø40mm x t35mm | 內徑 Ø15 | M2 x 13T 材質：POM + 鋼 輸送帶齒輪，自潤功能，耐磨。 適用產業：五金機械、電子科技、半導體機械、醫療機械、食品加工機械。 替代料：鋁、銅、鋼、鐵、尼龍 (MC、PA)、PEEK。

Gear

齒輪

Spiral Gear

螺旋齒輪

Spiral Gear 螺旋齒輪
