MANUAL BANDSAW - BMT 916A

VERTICAL MILLLING MACHINE - BMT 4500V

Feature: • Heavy duty mill for wide range of applications • Machine body is made of Meehanite casting. • 5 HP inverter driven spindle, variable speeds • X & Y axes automatic feeds driven by 1⁄2HP 12P motor and inverter • Z axis rapid up-down driven by 1⁄2HP 6P motor. • Y & Z axes square ways • Turcite-B coated on X & Y saddle. • Hardened table and all slide ways. Specification: • Table size: 305 x 1500mm • X, Y, Z travel: 1000 x 397 x 403mm • Spindle motor: 5HP • Spindle taper: ISO40 • Spindle speed: variable 72~4200rpm • Quill diameter: 105mm

SURFACE GRINDER - BMT CS3060AH

VARIABLE SPEED DRILLING MACHINE - BMT 530FTD

CONVENTIONAL LATHE - BMT 1730G

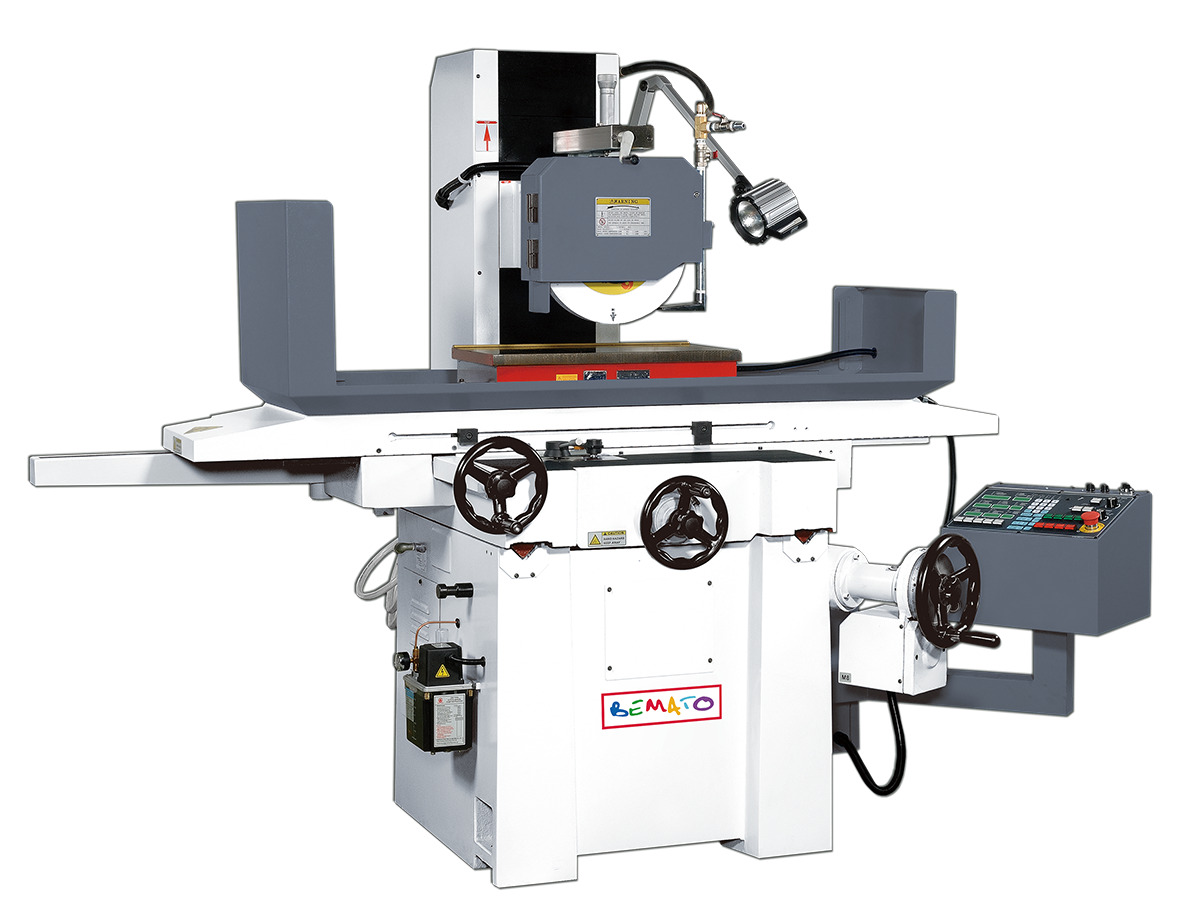

SURFACE GRINDER - BMT CS3060AH

Feature: • Hydraulic longitudinal feed. Direction changed by sensor & solenoid valve. • Automatic cross feed. Direction changed by stopping dog and limit switch. • Manual vertical feed • Saddle type • Automatic lubrication • Longitudinal: one flat and one V way • Cross: 2 V way • Optional AD5 automatic down feed and magnetic chuck Specification: • Grinding surface of table: 300 x 600mm • Max. grinding surface: 300 x 600mm • Max. distance from spindle center to table: 500mm • Wheel speed: 2900rpm • Wheel dimension: 180 x 13 x 31.75mm • Spindle motor: 2HP

BEMATO INTERVIEW

2019Bemato CF interview final.mp4

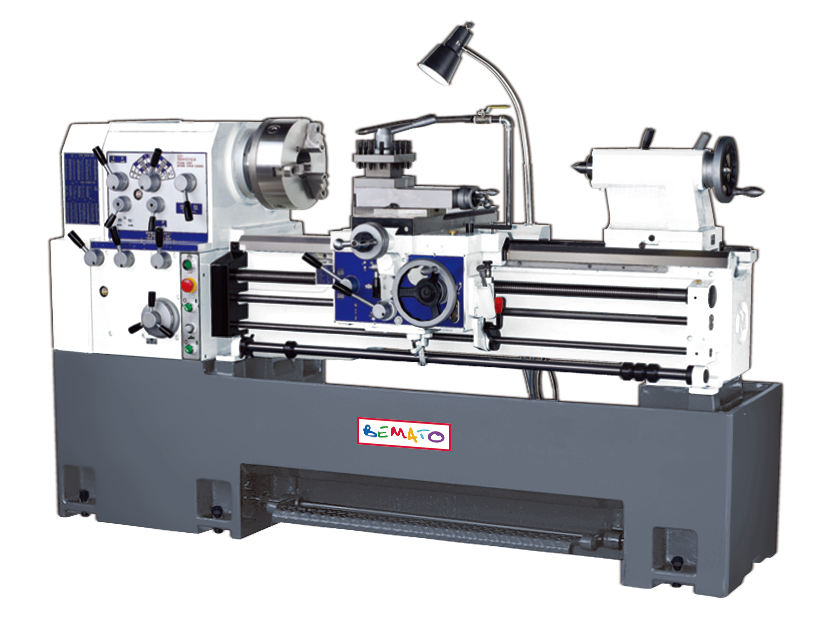

CONVENTIONAL LATHE - BMT 1730G

Feature: • Selective bed width: 300 mm • With FAG or SKF precision bearings installed on spindle, maximum cutting depth can be 8 mm on 50 mm diameter and best roundness 0.003 mm (200 mm long). • Thermal treated and precision ground alloy gears. • Universal gearbox for both imperial and metric thread-conversion table also attached. • Tracks of cross slide and bed are well lubricated with lubrication pump (manual). • CE certified Specification: • Swing over bed: 430mm • Distance between center: 760mm • Spindle nose: D1-6 • Spindle bore: 58mm • Spindle motor: 5HP • Spindle speed: 12 steps, 20~2000rpm

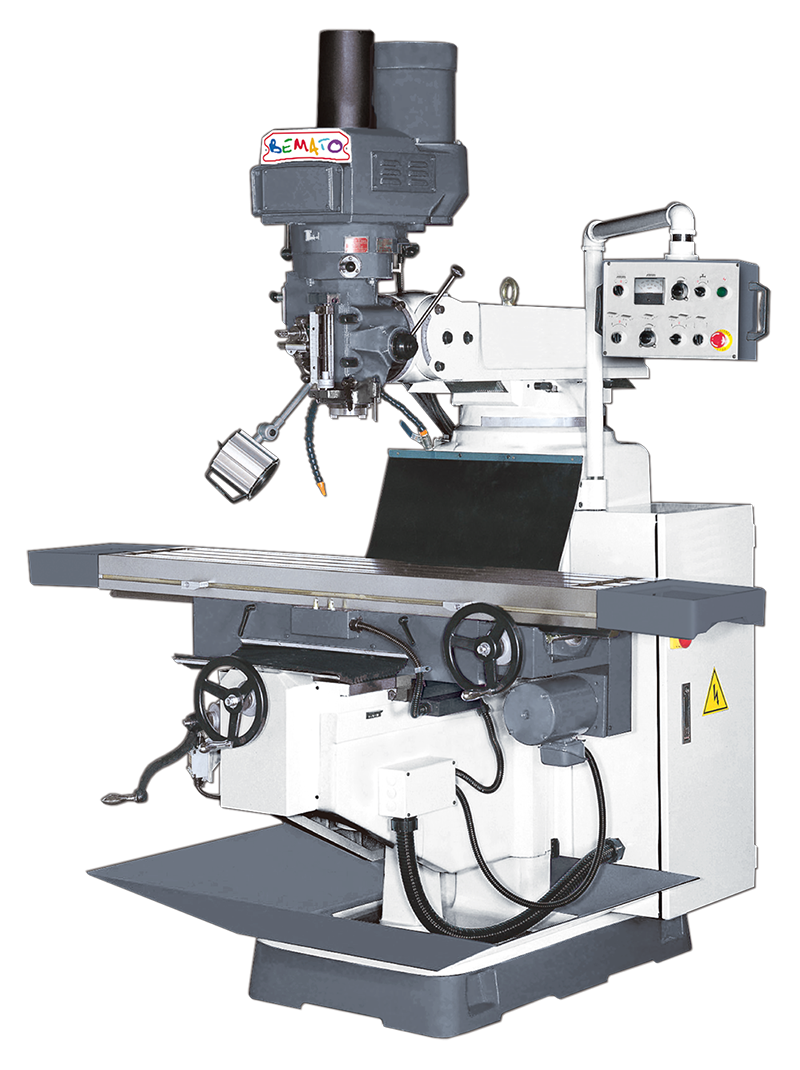

VERTICAL MILLING MACHINE - BMT 4500V

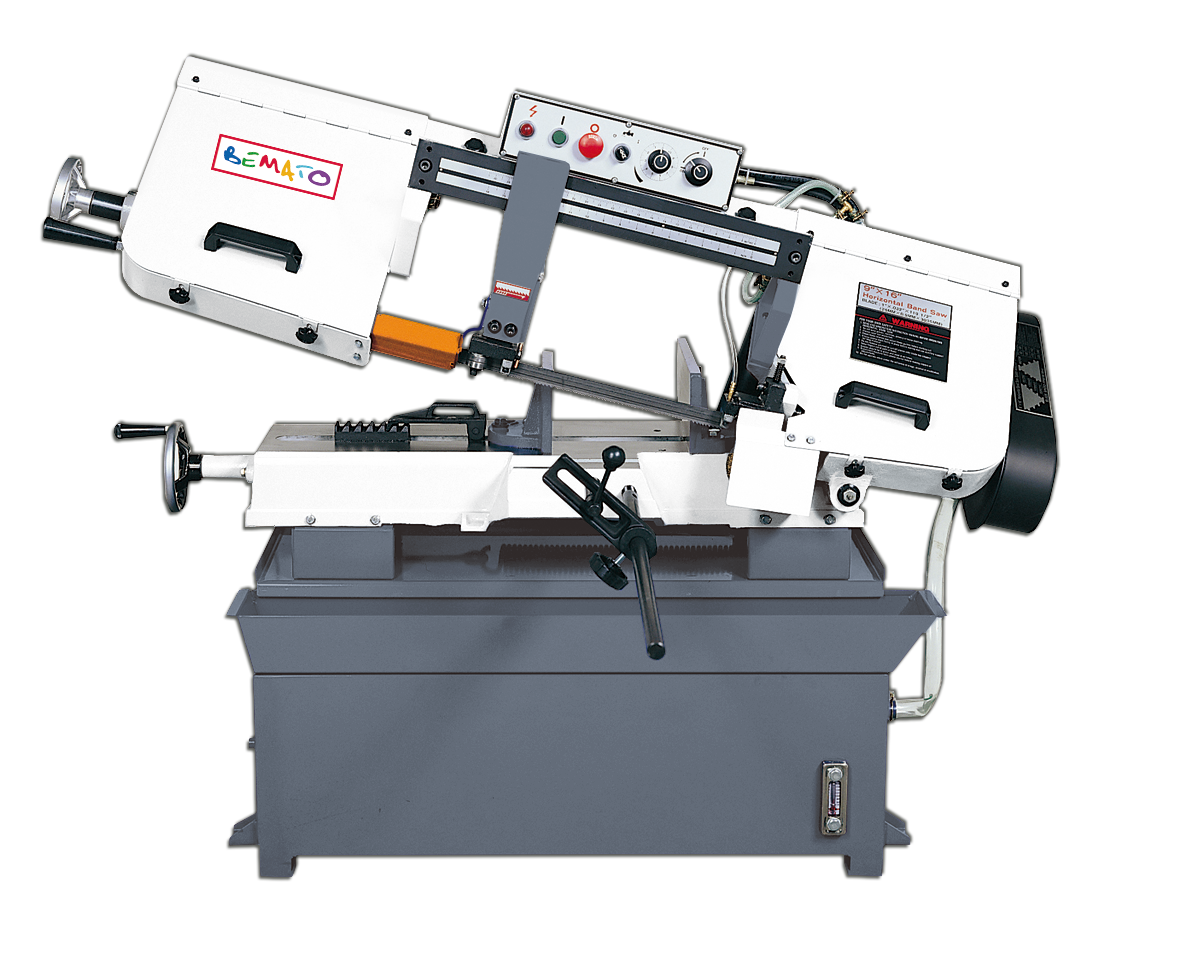

9" MANUAL BANDSAW - BMT 916A

Feature: • Swivel vise • 4 step pulley • Coolant pump • Removable chip tray • M42 saw blade Specification: • Capacity (90): 225mm / 225 x 345mm / 35 x 500mm • Capacity (45): 165mm / 225 x 165mm • Blade size: 27 x 0.9 x 3035mm • Blade speed: 4 steps, 25/40/51/71 mpm • Blade motor: 1.5HP

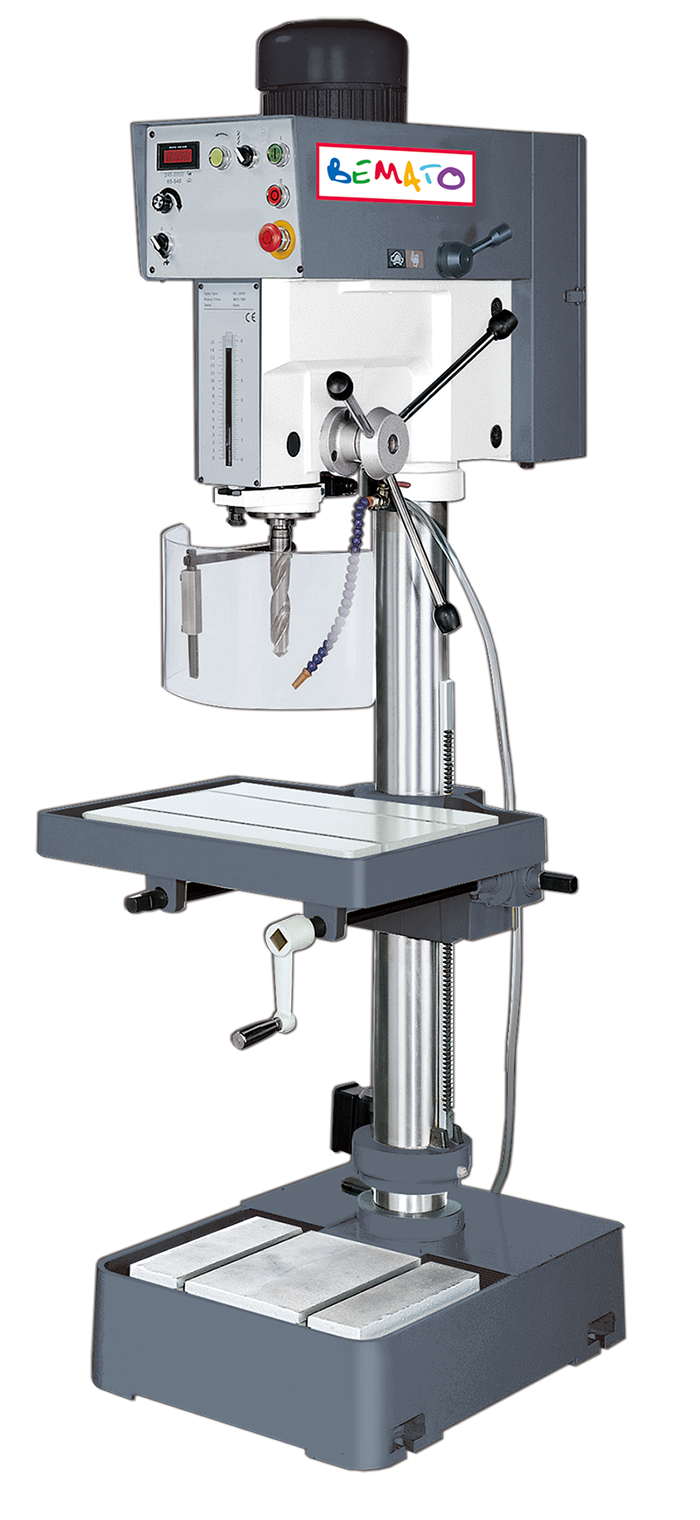

VARIABLE SPEED DRILLING MACHINE - BMT 530FTD

Feature: • High / low gear box driven system • Variable speed inverter technology for easy control • Digital tachometer display • High torque design at all speeds • Can operate up and down from both front and side of table, suitable for a small working space. • Base with integrated coolant tank and pump, coolant circulation system. • HMI Interface coming up Specification: • Drilling capacity: 32mm • Tapping capacity: 19mm • Spindle center to column surface: 265mm • Spindle nose to table: 760mm • Spindle taper: MT3 • Spindle speed: variable, H: 245~2000rpm / 65~540rpm • Spindle motor: 2HP
