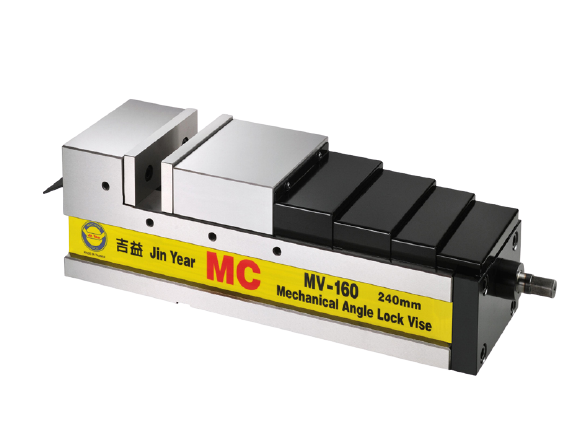

MC MECHANICAL LOCK VISE MC機械式角固虎鉗
1. Down thrust with “semi-sphere” to prevent work piece lift.
2. Clamping System: Screw mechanical.
3. Vise body is made of ductile iron FCD-60.
4. Vise bed hardened to HRC 45° and maintain accuracy for long.
5. Vise bed height-size and the guide block side are all made with full control, can 2, 3, or 4 vises to perform a job at a time.
6. Vise have 4 ways of clamping for you to choice.
特點：
1.角固式配合"半圓球體"下鎖之力，可防止工件上浮。
2.夾緊系統：螺旋機械式。
3.虎鉗本台採用球狀石墨化鑄鐵FCD-60材質。
4.虎鉗滑動面均經硬化熱處理HRC45°，堅固耐用確保精度。
5.虎鉗本體的高度與導正鍵槽皆做定寸管制，可以2、3、4台一起使用。
6.虎鉗有四種不同的夾持方式，供您選擇。

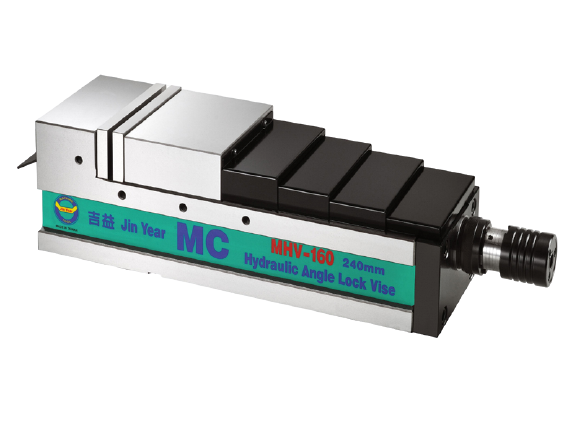

MC HYDRAULIC ANGLE LOCK VISE MC增壓式角固虎鉗
1. Down thrust with “semi-sphere” to prevent work piece lift.
2. Mechanical/ Hydraulic. Two operate methods.
3. Vise body is made of ductile iron FCD-60.
4. Vise bed hardened to HRC 45° and maintain accuracy for long.
5. Vise bed height-size and the guide block side are all made with full control, can 2, 3, or 4 vises to perform a job at a time.
6. Vise have 4 ways of clamping for you to choice.
MODEL:MHV-100 MHV-130 MHV-160 MHV-160A MHV-200
專利在案 本增壓系統保固一年
特點：
1.角固式配合"半圓球體"下鎖之力，可防止工件上浮。
2.增壓式與機械式兩種使用方法。
3.虎鉗本台採用球狀石墨化鑄鐵FCD-60材質。
4.虎鉗滑動面均經硬化熱處理HRC45°，堅固耐用確保精度。
5.虎鉗本體的高度與導正鍵槽皆做定寸管制，可以2、3、4台一起使用。
6.虎鉗有四種不同的夾持方式，供您選擇。

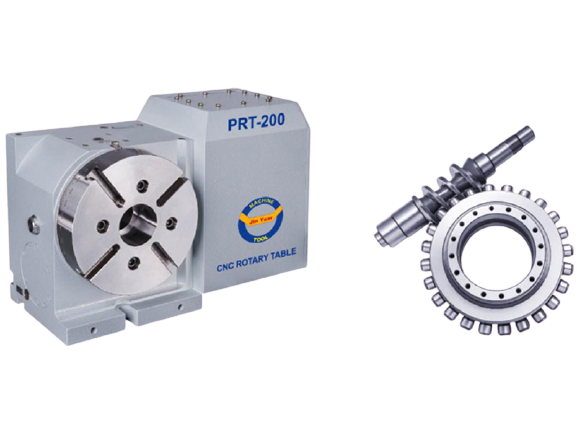

CNC分度盤
CNC ROTARY TABLE
NON-BACKLASH ROLLER CAM TYPE
1.The roller cam consists of an input cam shaft and a roller turret.
2.The roller cam is designed with rolling contact, featuring high speed, and outstanding durability.
3.Engagement between the roller and the cam is preloaded to fully eliminate backlash that enables theroller and cam to exhibit their ultra-high precision feature.
4.Besides, with rolling contact to transmit kinetic energy, energy consumption during drive can be dramatically reduced.
This enable the roller cam to achieve over 90% of transmission efficiency.
特點:無背隙滾子凸輪式
1.滾子凸輪指的是入力凸輪軸及滾子轉塔組兩大部分組成。
2.滾子與凸輪以滾動方式接觸，具有高剛性、高速性及耐久性等三大特性。
3.滾子與凸輪之嚙合經預壓處理，因此可完全消除滾子與凸輪間之背隙，更凸顯滾子凸輪之超精密特性。
4.此外，以滾動方式傳遞動能，可有效減少驅動過程中之能量消耗，因此滾子凸輪之傳動效率可高達90%以上。

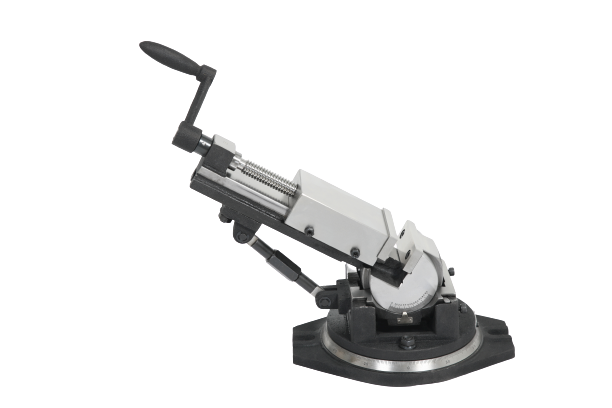

三向式角度虎鉗
UNIVERSAL 3-WAY TILTING VISE
This vise can be up to down or left to right operation to meet your demand.
MODEL:WV-3",WV-4",WV-5"
此虎鉗可依需求上下左右皆可操作

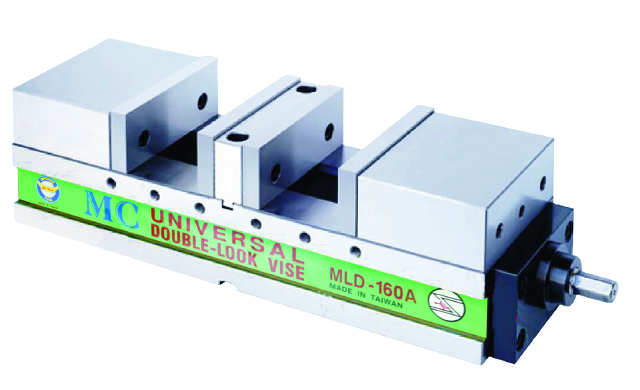

MC雙夾式虎鉗-MLD100A/160A
MC PRECISION DOUBLE-LOCK VISE
The workpiece size within 4mm able to adjustable and vise have three ways of clamping for you to choose.
★虎鉗有六種夾持方式，供您選擇。
★工作物件大小差距在4mm以內可以調整 夾持。

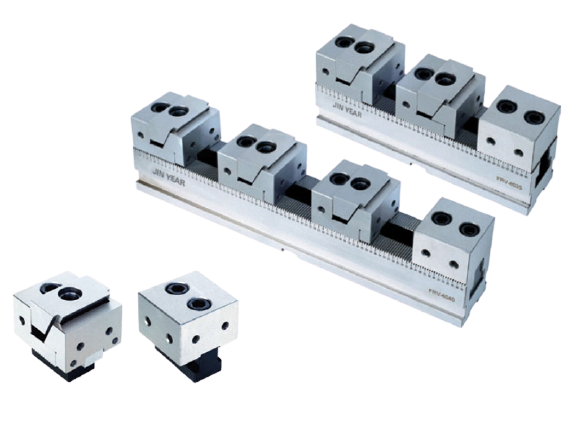

彈性化並列式虎鉗
FLEXIBLE ROW VISE
This positioning unit is suitable for quick mold or fixture exchange on CNC horizontal or vertical machines.
設計上突破傳統，無論是方型、圓形或不規則之異形工件，大小皆能夾持!
主體定寸高度、寬度可多台並用，其高精度的齒定位基準面，任意調整夾持位置，可快速定位，設計程式時可容易計算出座標點。

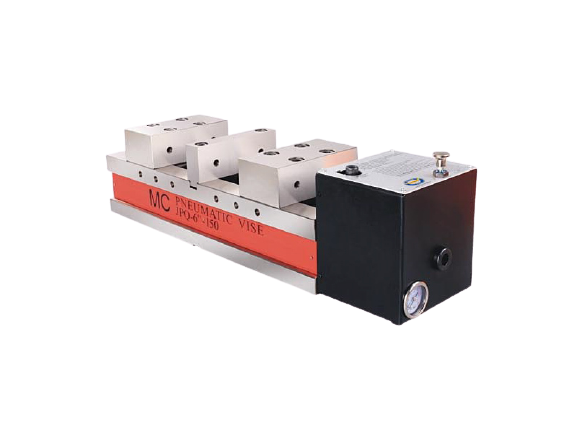

MC PNEUMATIC DOUBLE VISE MC空油壓式雙夾虎鉗
FEATURES：
1.Super high-clamping force, Even the air source at low pressure 8kg/cm²
which can be achieved super high-clamping force 4000kgf.
2.The workpiece sizq within 5mm able to adjistable.
MODEL：JPQ-5”-115、JPQ-6”-150
特點：
1.超高挾持力、空壓源8kg/cm²之低壓源，即可達4000kgf之超高挾持力。
2.工作物件大小差距在5mm以內可以調整挾持

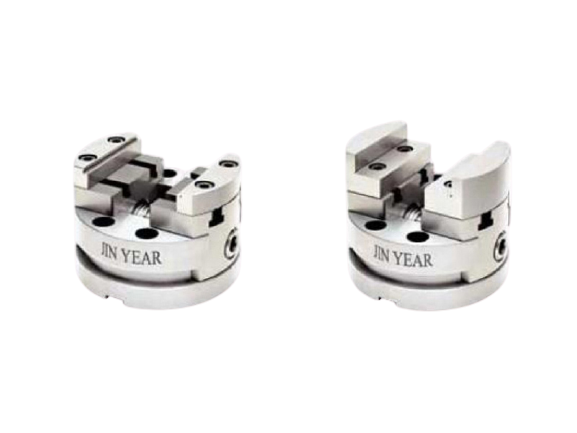

五軸專用精密虎鉗
SELF CENTERING VISE FOR 5-AXIS
MILLING MACHINE
For quick & easy work piece clamping on turning centers or for 5-axis machining on machine centers.
Round-shaped style occupies less space and reduces interference.
Available are different styles of vise jaws for different machining needs.
The SCV vises come with different jaw width of 100mm,130mm,160mm.
同動式求心虎鉗適用四軸，五軸，立臥式CNC銑床之精密加工

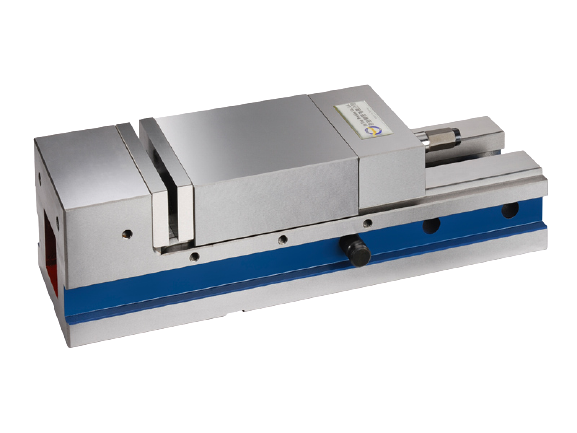

MC HYDRAULIC ANGLE LOCK VISE MC內藏式增壓角固虎鉗
1.Vise body is made of ductile iron FCD 60.
2.Down thrust with “semi-sphere” to prevent work-piece lift.
3.Vise can side-lock to work. (Perpendicular of side lock 90°=0.015/100mm)
4.Vise bed hardened to HRC 45° and maintain accuracy for long. 5.Vise slide-chunk can take out, convenient to clean away ships and inside of vise.
6.Vise bed height-size and guide block side are all made with full control, can 2, 3, or 4 vises to perform a job at a time.
適用CNC立式綜合切削中心機一般銑床使用
★本增壓系統保固一年
專利字號：152071 ZL 98 2 49250.2
★ 虎鉗可側立使用

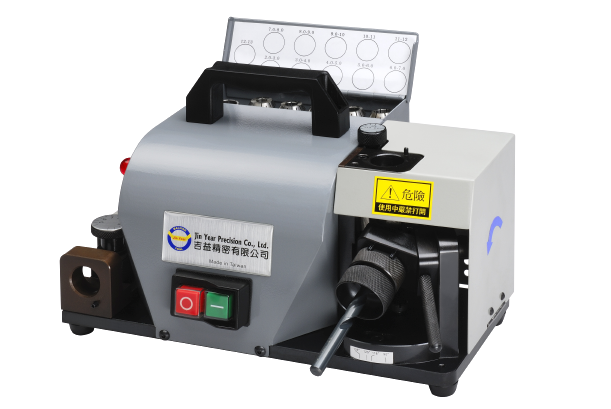

鑽頭研磨機
DRILL RE-SHARPENING MACHINE
1. The machine is authorized with CE security certificate.
2. easy-to-operate, fast-to-operate, stable quality.
3. Point angle is 90°~135° (118°, averagely)
4. Be able to sharpen at the fixed point or adjust according to your needs. (0.7mm, averagely)
5. innovative “up to down” swinging grinding to create the sharpest and the most durable finished drill.
鑽頭研磨機 MODEL:JD-213 JD-1326
"精準+鋒利+耐用"才能符合您的需求
特點：
1.本機有CE安全認證。
2.操作簡單快速，品質穩定。
3.先端角由90°~135°(一般適用118°)
4.靜點研磨，可以依需求做調整。(一般適用0.7mm)
5.首創上下擺動研磨方式，磨出來的鑽頭最鋒利、最耐用。
JIN YEAR PRECISION CO.,LTD.

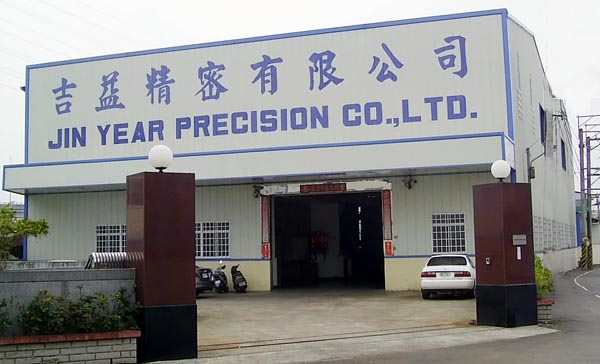

720°VR-Company Appearance

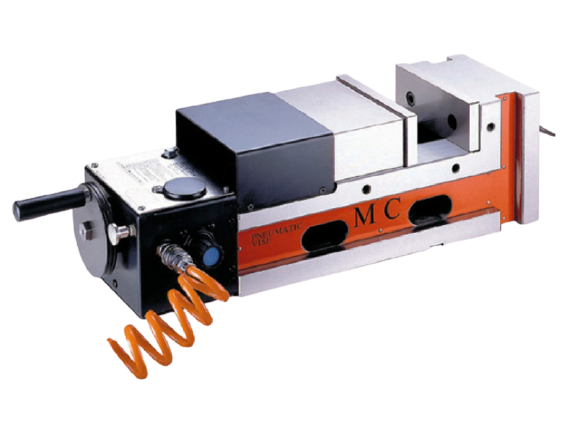

MC PNEUMATIC PRECISION MC精密型空油壓式角固虎鉗
1.Super high-clamping force,Even the air source at low pressure 8kg/cm² which can be achieved super high-clamping force 9000kgf,
and the 0~9000kgf clamping force can be adjusted freely by pressure regulator.
2.Humanize designs of handwheel.You can turn the special handwheel directly and to move the cover and unused other handle to reach for clamping actions.
3.Triple usage of vertical,side and horizontal.
4.Pressed down structure.
特點：
1.超高夾持力、空壓源8kg/cm²之低壓源，即可達9000kgf之超高夾持力，而夾持力從0-9000kgf由調壓器自由設定。
2.手輪人性化設計，不需使用任何把手，直接轉動特製手輪，即可移動上蓋，以利夾持動作。
3.立、側、臥三用，定寸規格。
4.內藏角固下壓結構。

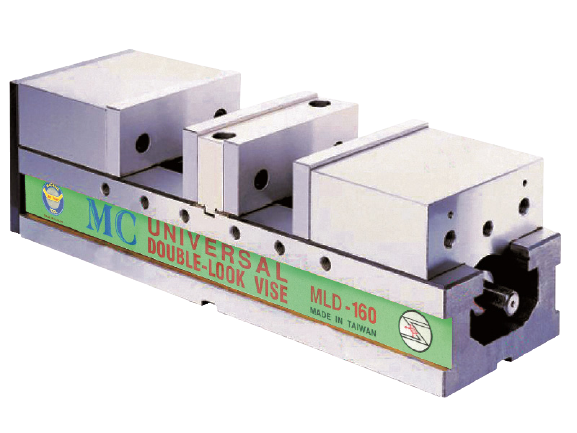

MC雙夾式虎鉗-MLD100/160
MC PRECISION DOUBLE-LOCK VISE
The jaw more deeper than those of same grade vice. Can clamping higher workpiece correctly.
New development double-clamp mechanism,can process two difference size workpiece at same time,one unit treated as two units.
The work pieces size within 75mm able to adjustable.
Vise have six ways of clamping for you to choose.
★虎鉗有六種夾持方式，供您選擇。
★工作物件大小差距在75mm以內可以調整夾持。

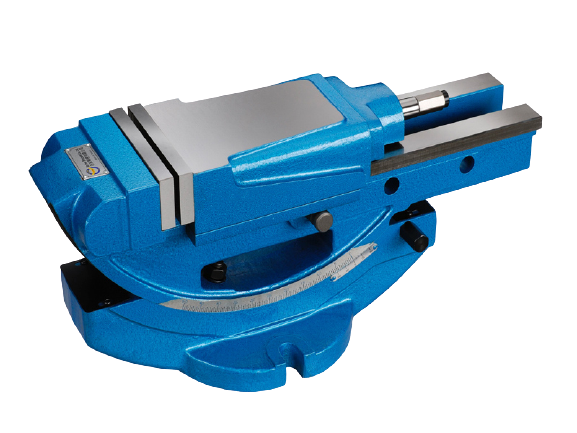

傾斜式增壓虎鉗
TILTING HYDRAULIC VISE
The vise is different from general vise use for miller.
It can be adjusted the angle for processing requirement, and its vertical angle can be adjusted freely 0-45.
The graduation is very precise. You may read the processing angle clearly from the scale.
本虎鉗不同於一般的銑床虎鉗，可依不同需求直接調整出加工角度，其垂直方向調整角度可從0至45度自由調整，刻劃的度數極為精確，可直接調整出加工角度

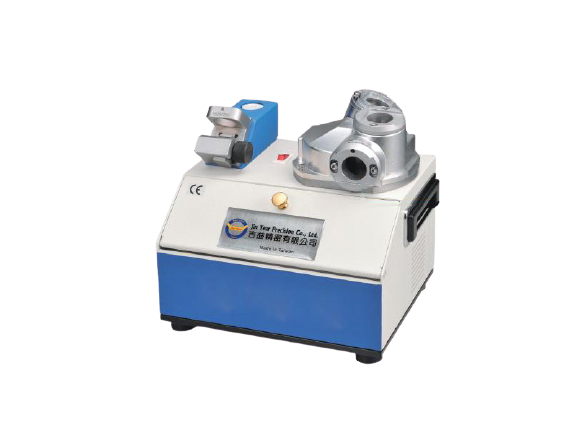

立銑刀研磨機
FAST END MILL RE-SHARPENING MACHINE
1.High Efficiency,High Quality Grinding Slip,Good Grinding Results.
2.Quality Assurance:0.02mm
3.Easy Operation,and Fast for Convenience.
簡易操作快速又便利

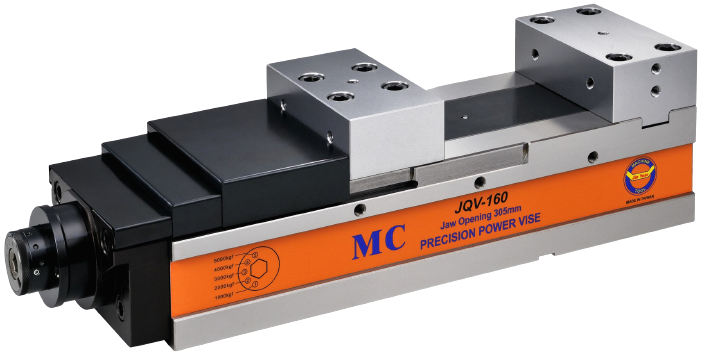

MC POWER VISE MC定壓式倍力虎鉗
1.Pressure Constant. Clamping force can presetting, repeat use the same clamping force.
2.Vise body is made of ductile iron FCD-60.
3.Vise bed hardened to HRC45° and maintain accuracy for long.
4.Vise bed height-size and the guide block side are all made with full control, can 2, 3, or 4 vises to perform a job at a time.
5.The length of vise body is very short, but the clamping range is very big. It works with every kind of milling machine, CNC machine center.
虎鉗可側立使用
VISE CAN SIDE-LOCK TO WORK
特點：
1.定壓裝置，夾持力可以預先設定，重複使用相同的夾持力。
2.虎鉗本台採用球狀石墨化鑄鐵FCD-60材質。
3.虎鉗滑動面均經硬化熱處理HRC45°，堅固耐用確保精度。
4.虎鉗本體的高度與導正鍵槽皆做定寸管制，可以2、3、4台一起使用。
5.虎鉗本體長度超短，開口超大，適合各式铣床、中心加工機使用。

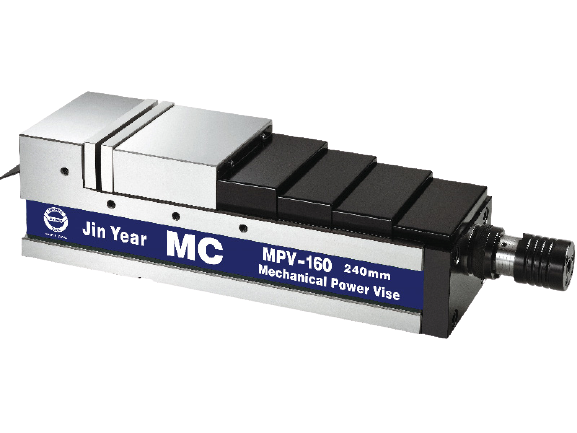

MC倍力角固虎鉗
MC MECHANICAL ANGLE LOCK POWER VISE
1. Down thrust with " semi-sphere " to prevent workpiece lift.
2. Mechanical / Hydraulic. Two operate methods.
3. Vise body is made of ductile iron FCD-60.
4. Vise bed hardened to HRC45° and maintain accuracy for long.
5. Vise bed height-size and the guide block side are all made with full control, can 2,3,or 4 vises to perform a job at a time.
6. Vise have 4 ways of clamping. For your to choice.
MODEL: MPV-130 MPV-160 MPV-160A MPV-200
專利在案 本增壓系統保固一年
特點：
1.角固式配合"半圓球體"下鎖之力，可防止工件上浮。
2.增壓式與機械式兩種使用方法。
3.虎鉗本台採用球狀石墨化鑄鐵FCD-60材質。
4.虎鉗滑動面均經硬化熱處理HRC45°，堅固耐用確保精度。
5.虎鉗本體的高度與導正鍵槽皆做定寸管制，可以2、3、4台一起使用。
6.虎鉗有四種不同的夾持方式，供您選擇。

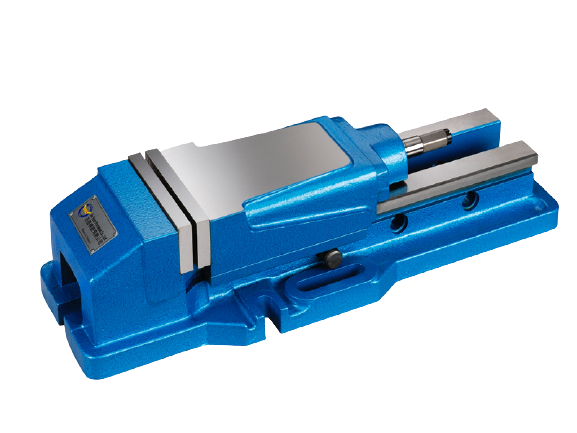

內藏式增壓虎鉗
HYDRAULIC MACHINE VISE
(BUILT-IN TYPE)
1.Most suitable for vertical machine center, milling machine.
2.Vise body is made of high quality ductile cast iron resists bending.
3.Pressure system for maximum clamping pressure with minimum force.
4.Three kind of Clamping ranges design：Quick to change and easy to operate.
特點：
1.適合立式綜合切削加工機，銑床使用。
2.虎鉗本台使用高延展性鑄鐵，防止變形。
3.本壓力系統只需小小施力，便可發揮強大的夾持力。
4.三個夾持範圍設計，可快速變換且操作簡單。

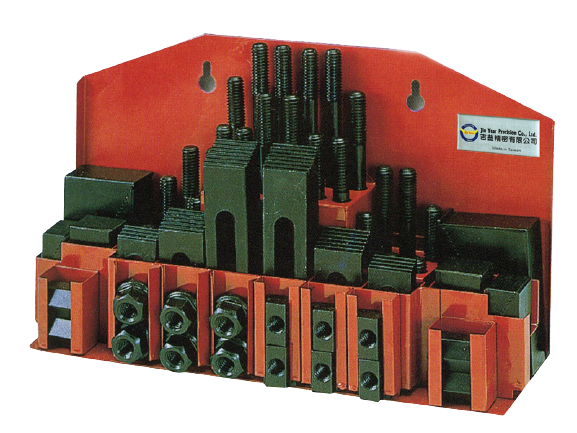

CK系列 萬能夾具組
52-PCS STEEL CLAMPING KIT
1. Heat treated steel black oxide finish.
2. Block size 1˝ (25mm). Set in plestic rack consists of:24pcs Studs(4 ea, 3/4/5/6/7/8 inches or 75/100/125/150/175/200mm.)
3. T-Nuts
4. Coupling Nuts
5. Flange Nuts
6. step Clamps
7. Step Blocks
8. The parts of every specification all can be purchased individually.
標準配件：
1.雙頭螺絲桿24支；英制規格長度有：3", 4", 5", 6", 7", 8"各4支，或公制螺絲桿：75, 100, 125, 150, 175, 200mm各4支
2.T型螺帽6個
3.法蘭螺帽6個
4.接頭螺帽4個
5.單頭壓板6個
6.三角級枕6組
7.每個皆可單獨訂購
