Prompt Integrated Technology Ltd.

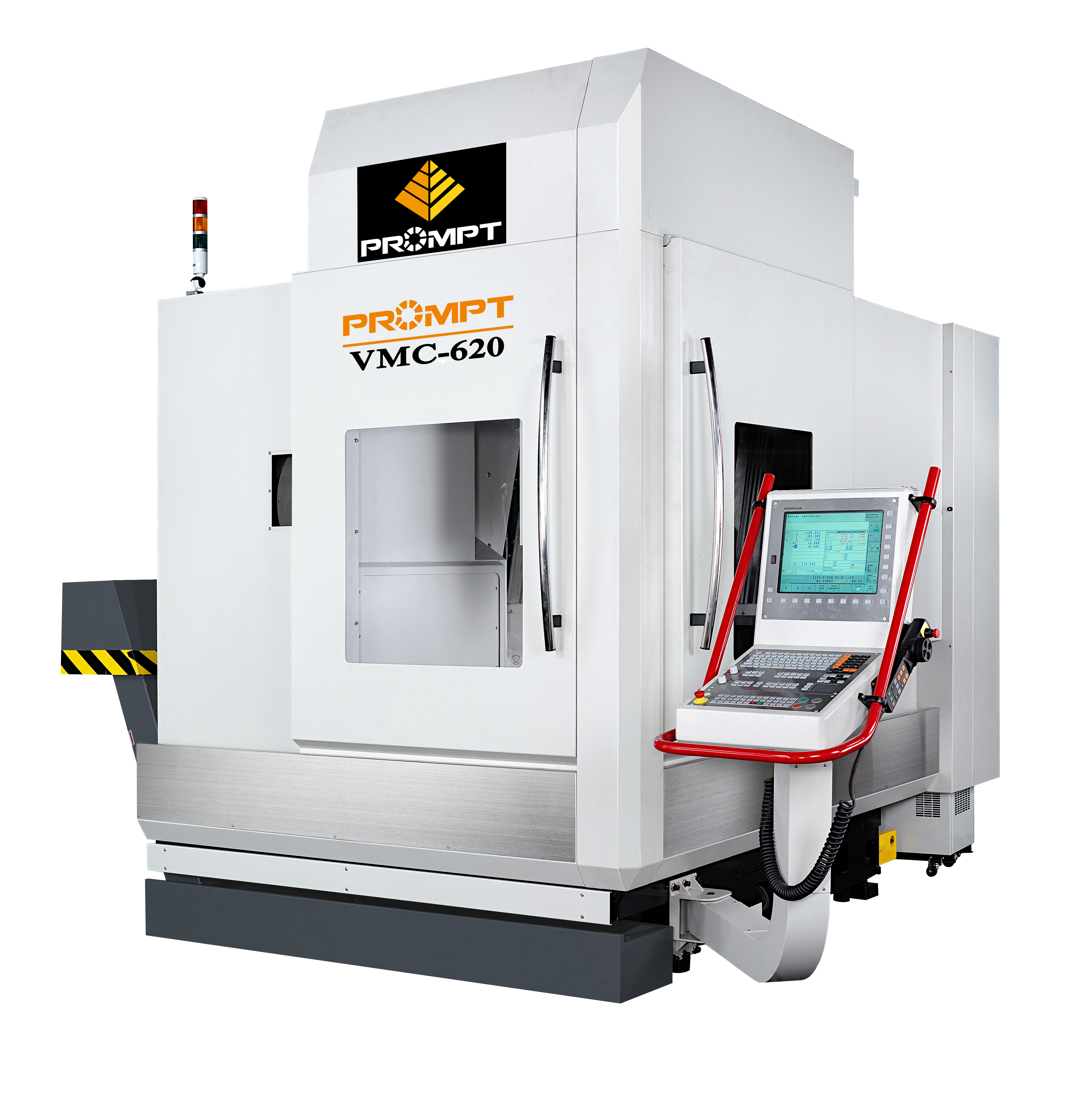

5 AXES MACHINING CENTER

5 AXES SIMULTANEOUS CONTROL CNC MACHINING CENTER

VMC-620

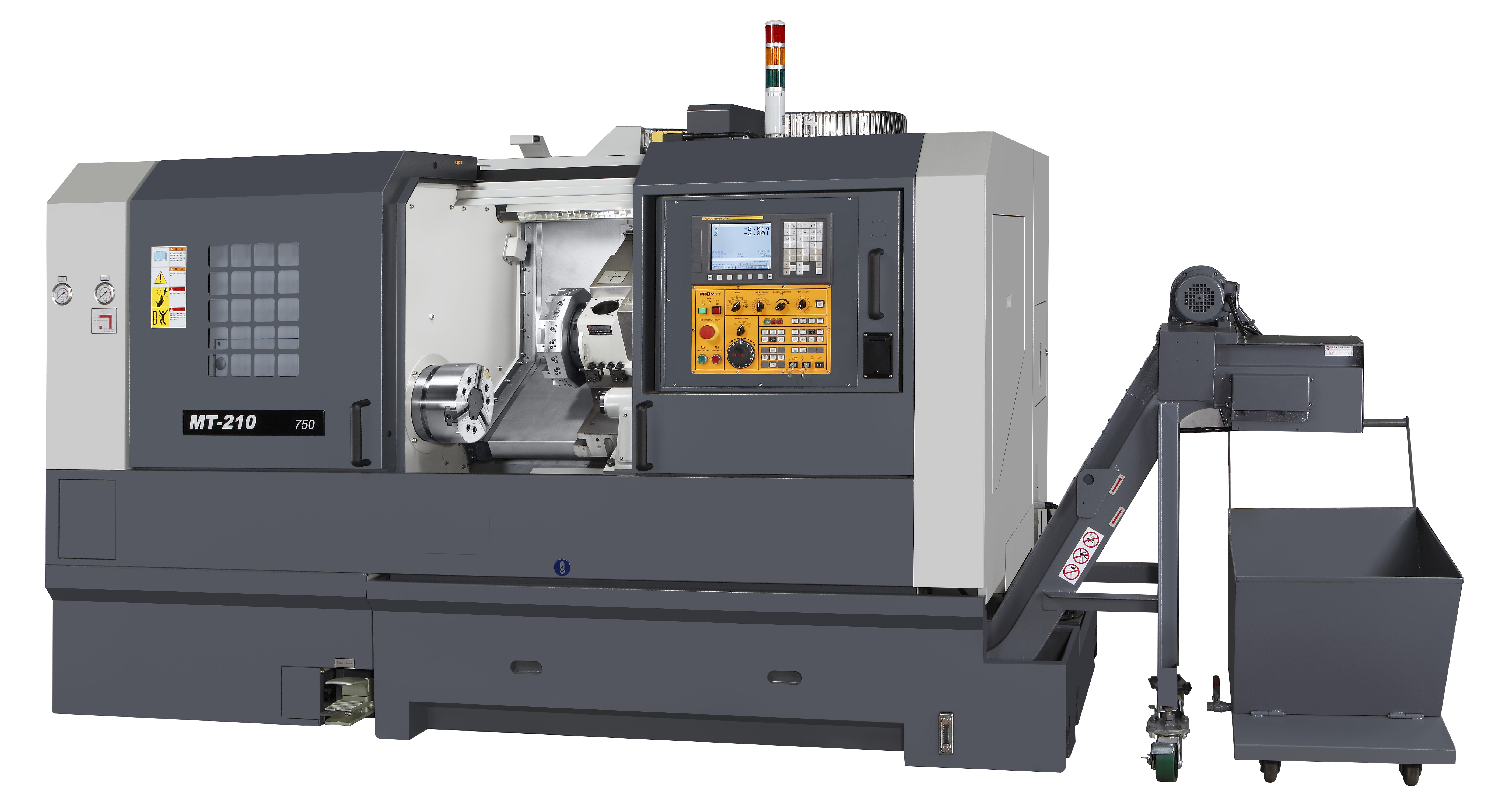

CNC LATHE SLANT TYPE

-30 degree slant bed design for easy operation and easy chip removal -Cast iron bed with optimally designed ribs with integral stiffness provides an very strong rigidity -Big diameter bearing provides high rigidity -High-resolution encoder mounted on spindle to provide accurate C axis positioning -C axis with continuous indexing -Double supported ball screws direct-driven servo motors are used for axial movements -Servo turret or hydraulic turret is offered for users as an alternative choice Large disc is equipped for easy tool set up -Special spindle motor location design reduces machine floor space -One-piece structure on the machine structure to provide massive rigidity -Programmable tailstock available as an option Large coolant tank -Internal coolant supply through turret disc -High pressure pump -PLC controlled chip conveyor

MT-210

MT Series

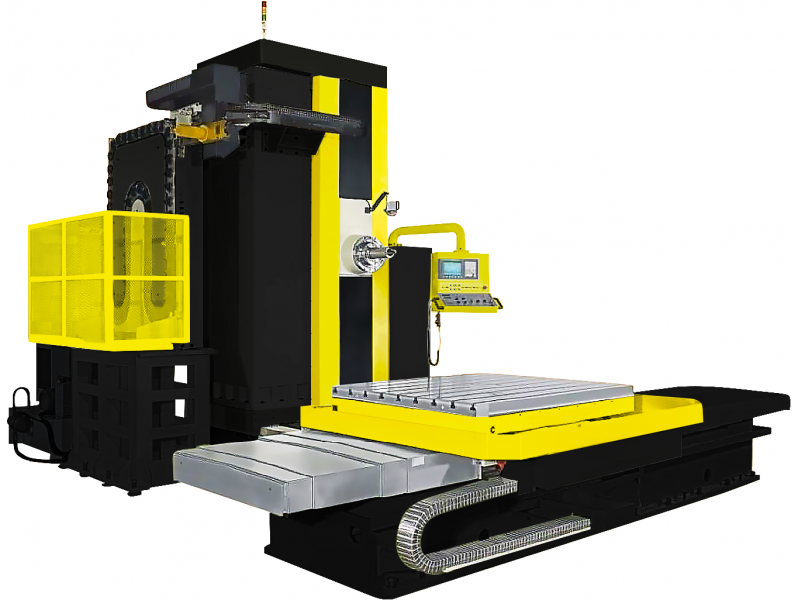

HORIZONTAL BORING & MILLING MACHINE

-Moving column construction -X/Y/Z box ways or X/Z Linear ways+Y box way -X,Y,Z-axis are equipped with linear scales -Gear-drive type spindle head is excellent for heavy cutting -0,001-degree servo-drive rotary table -Table rotation is transmitted through double worm/ double worm gear units to eliminate gear-backlash problem -W axis extension is free of deformation -Go tools chain type magazine -During machine assembly, all foundation bolts have been locked into the foundation to ensure the consistency of leveling accuracy

HBM-110-P2

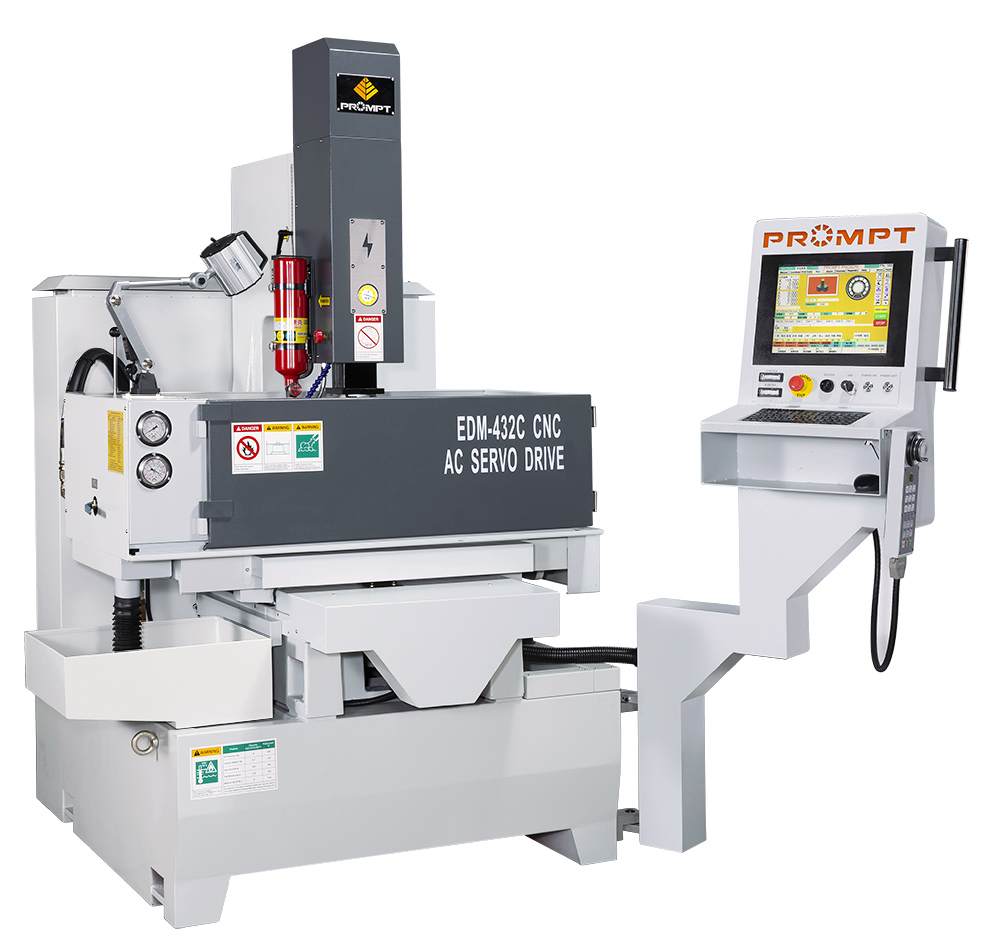

ELECTRICAL DISCHARGE MACHINE

-The system adopts Windows CE controller -Six-axis programmable control, XYZ+ABC (can be replaced by XYZ+ABW or XYZ+ACW) -ATC system and A, B, C axis and spindle tilt option are available to increase machine functionally -Automatic lubrication -USB port -Use a 15-inch LCD touch screen, mouse, and standard keyboard -Presented in a dialog window with 3D stereo graphic description -Machining path and graphic display -Close-loop and feedback circuit design of 0.001mm resolution numerical linear scale is adopted on the 3 axis of the machine. Such design could get precise position setting, and increase the machining precision and efficiency of ORBIT-CUT -Dialogue programming editor that provides variety of hole enlargement modes (including function of edge search, center search, reference point search) -Automatic multi-step machining is available -Automatic home search function -ARC automatic arcing adjustment -Automatic center search and offset which could search the center and the deepest point of the hole -Movement of axis linear (3 axis), arc (2 axis), spiral (3 axis) and offset -Switch function: Language switch (Chinese/English) and unit system switch (Metric/Inch) -Single side sparking of 3 axis and 6 directions (plane rotation) -Automatic programming edition function: According to the material, area, initial current and wear rate do proper adjustment

EDM-432C

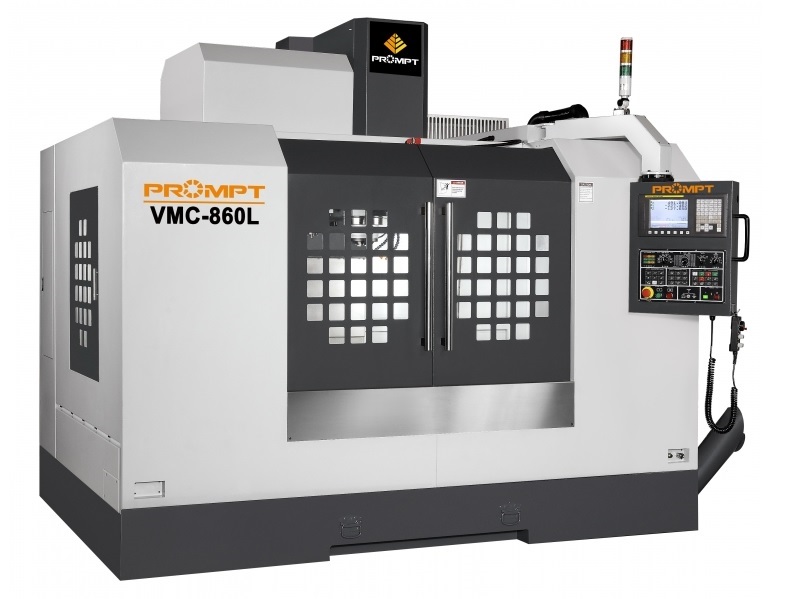

VMC L Series VERTICAL MACHINING CENTERS

-High precision and rigidity spindle -Top quality gears -Optical linear scale -4th and 5th axis rotary table -Circular inspection -Inspection by laser unit -Spindle dynamic balancing testing

VMC-860L
