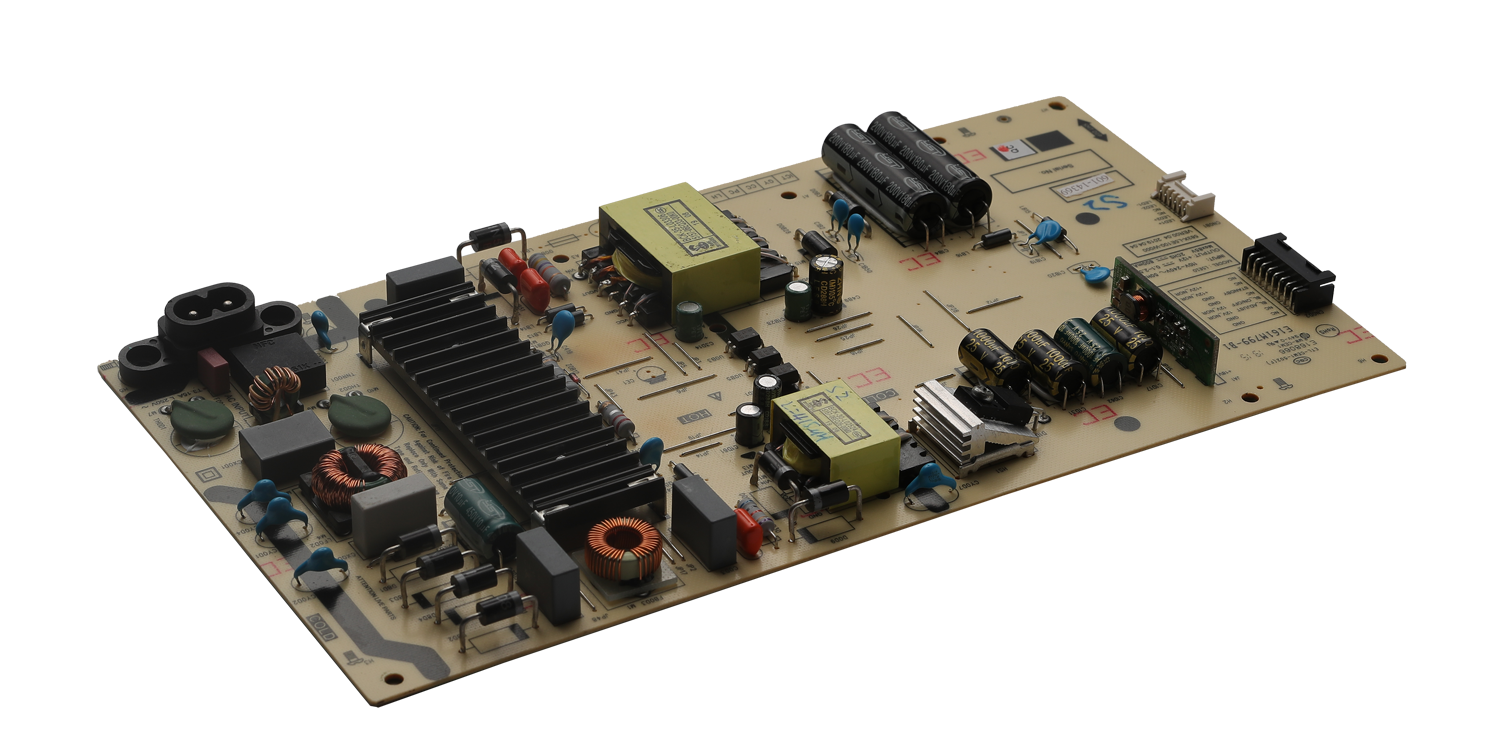

55” TV Power Board
-Main Controller: JP0010-L01/D01, DSP-based Intellegent Power Controller -Features: ．120W output power with 90% efficiency and 0.9 Power Factor ．40~170V LED power ．12V Scaler MCU power -Benefit: ．BOM cost reduce 20% ．Only 1~2 Transformer(s)
Energy/Power/TV/LED
第一層
Joint Power eXponent

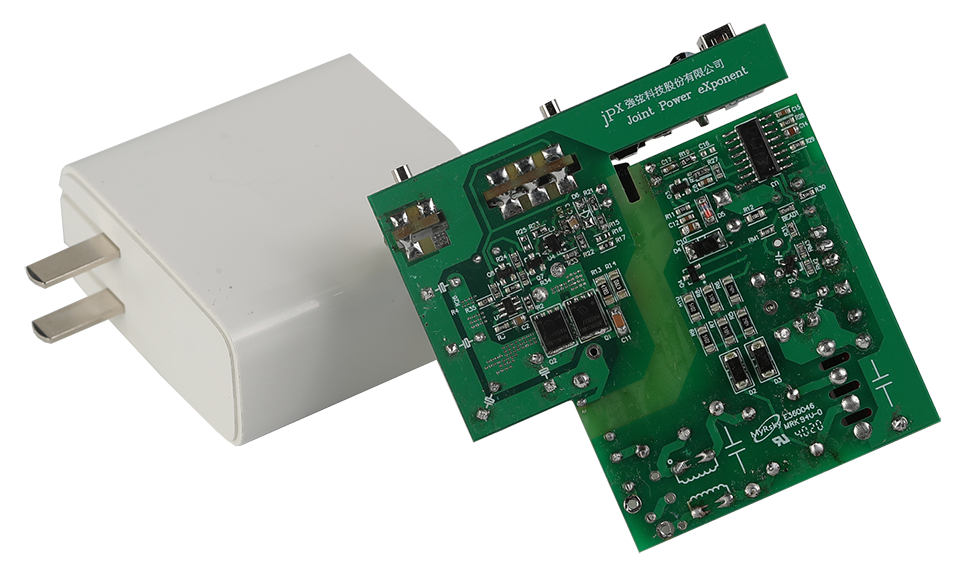

100W PD Adapter
-Main Controller: JP0010, DSP-based Intellegent Power Controller -Features: ．100W output power with 92% efficiency and 0.9 Power Factor ．Type C : 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/35A (PD 100W max) ．Type A : 4.5V/5A, 5V/4.5A, 9V/3A, 2.5A/12V, 1.5A/20V (QC3.0 30W max) ．Power density > 16W/in3. -Benefit: ．BOM cost reduce 20% ．Only 1 Transformer with very high power factor
Energy/Power/Adapter
Joint Power eXponent
CES2021-051 Joint Power eXponent.mp4
Joint Power eXponent

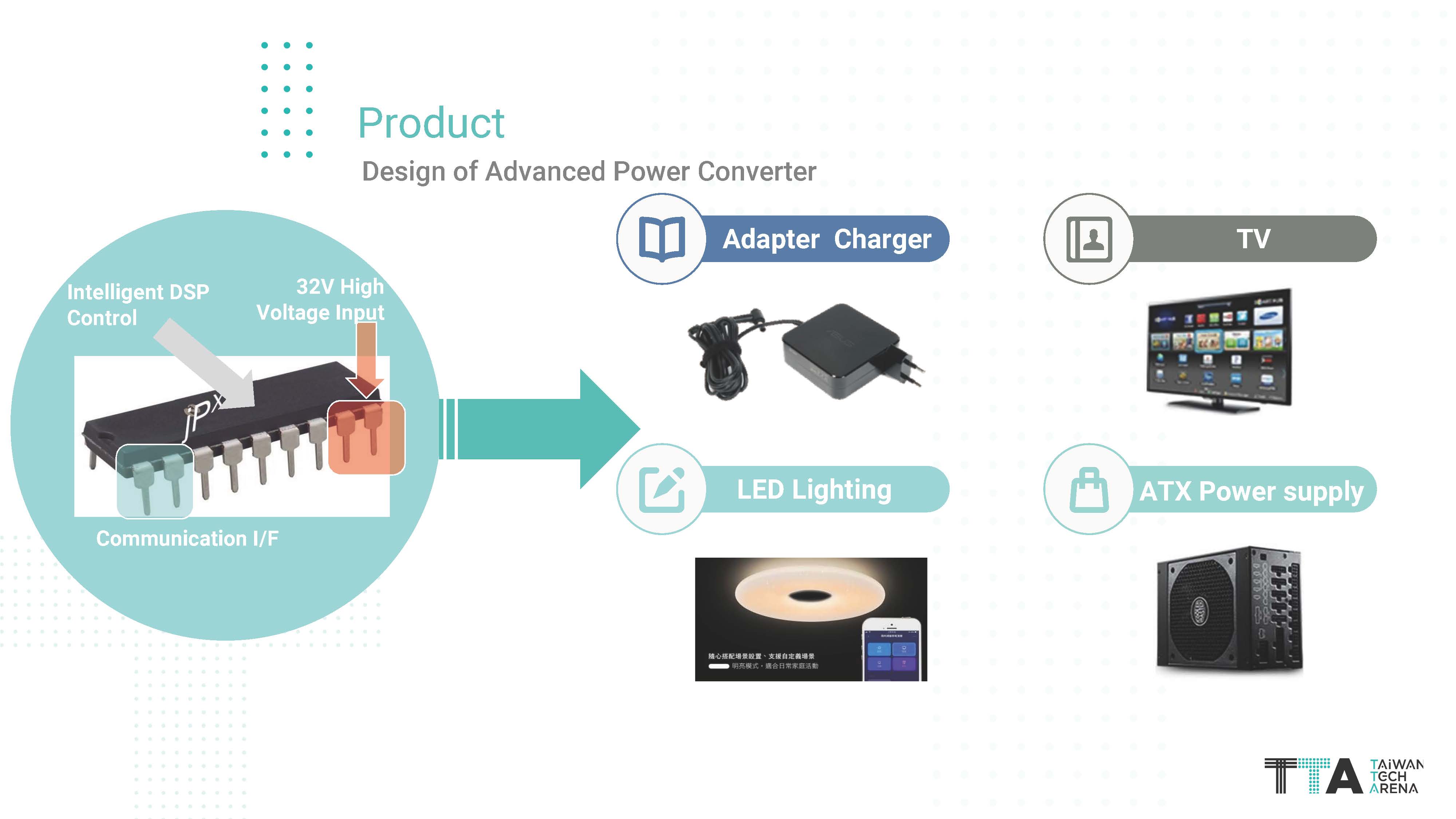

JPX is an IC design house for intelligent power management, exploiting a high-voltage process to encompass both digital control and real-time protection functions that reduce customer system cost, improve power factor, and increase efficiency. The products are adopted by international manufacturers such as Delta, Skyworth, Epistar Group, etc., moreover won numerous domestic awards and subsidies from the Ministry of Economic Affairs, which also selected JPX as a national highlight enterprise. Recently, JPX has cooperated with several international manufacturers in technical developments such as GaN HEMT, smart power supply, and USB-PD to provide optimal power system solutions. JPX is ambitious to provide the best system total solutions, technical services, and become a pioneer of power management in the future of the domestic industry.
About Joint Power Xponent, Ltd.

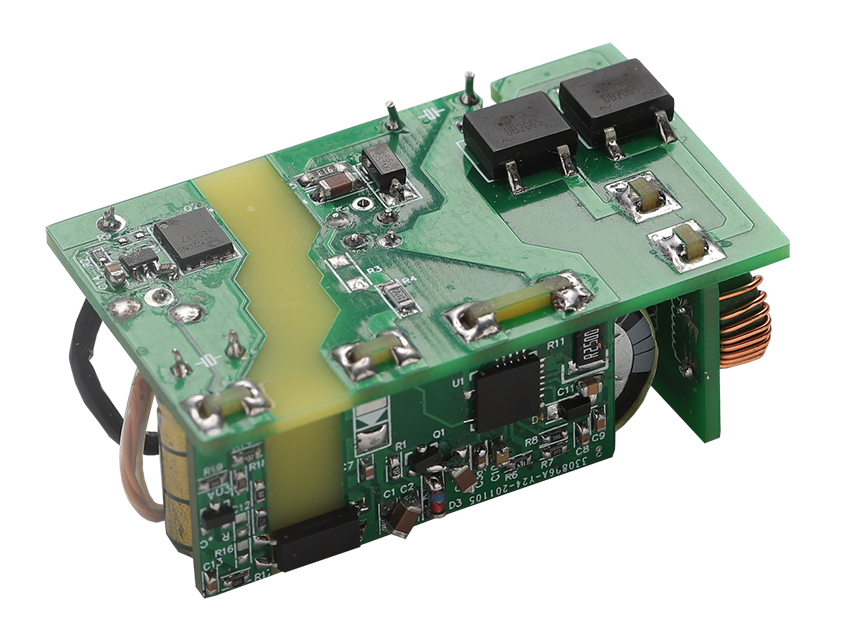

65W PD Adapter
-Main Controller: JP8020, GaN/SiC Combo Controller -Features: ．65W output power with 92% efficiency ．Type C : 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3.25A (PD 65W max) ．Type A : 4.5V/5A, 5V/4.5A, 9V/3A, 2.5A/12V, 1.5A/20V (QC3.0 30W max) ．Power density > 20W/in3. -Benefit: ．BOM cost reduce 25% ．Only 1~2 Transformer(s)
Energy/Power
GaN HEMT / Adapter
