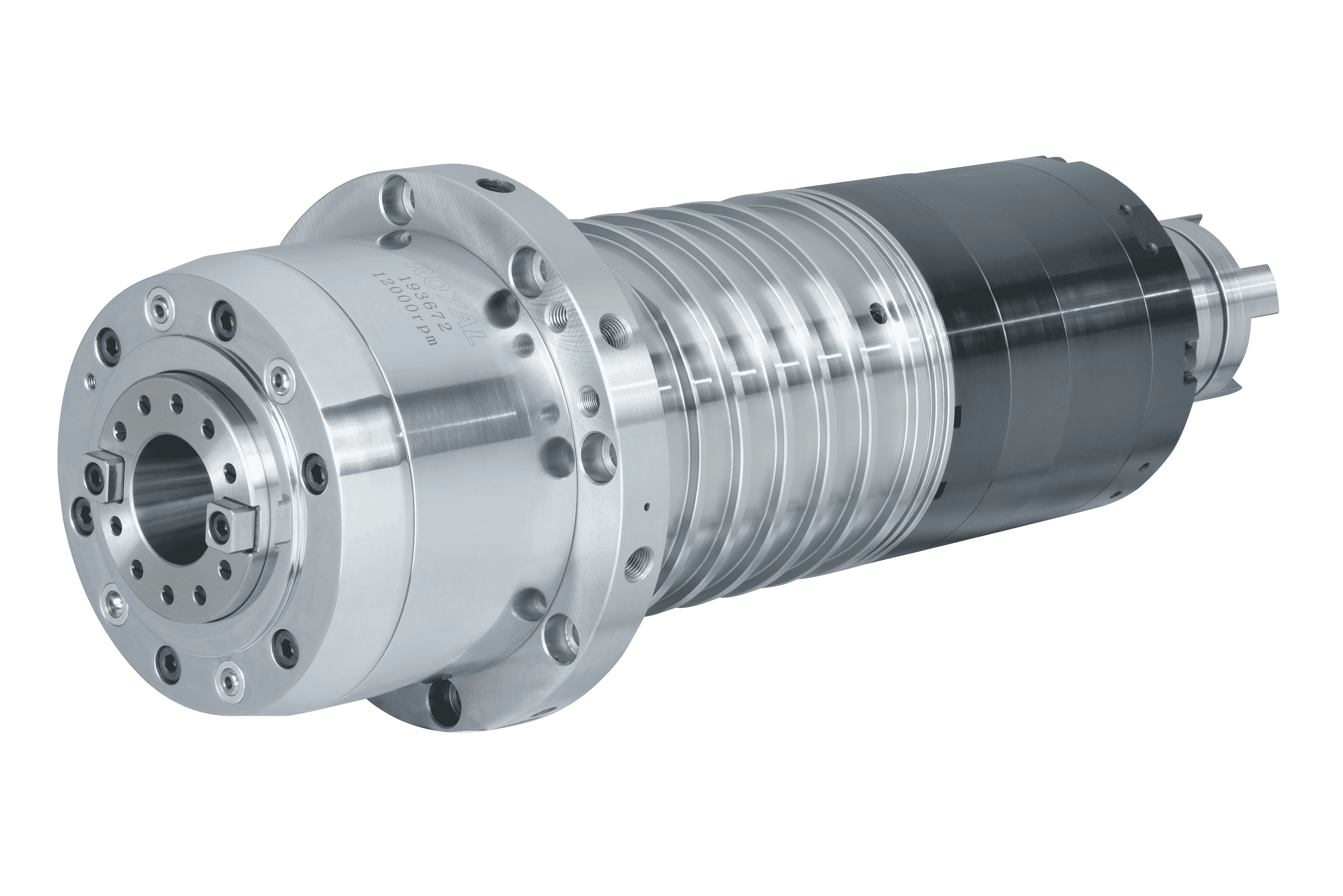

Direct-Drive Spindle (Mill-Turn) 銑車直結式主軸

★ Features ★ - High Dynamic Rotary Accuracy - High Precision, Low Vibration - Same Flange Dimension, High Adaptability ★ Specification ★ Housing: OD130mm Max. Speed: 3000rpm ★ Customization ★ Customized spindle specifications are available. Welcome to contact us for your spindle solutions. ★ 主軸特色 ★ - 動態迴轉精度高 - 高精度、低振動 - 法蘭介面相同，高互換性 ★ 基本規格 ★ 本體外徑: OD130mm 最高轉速: 3000rpm

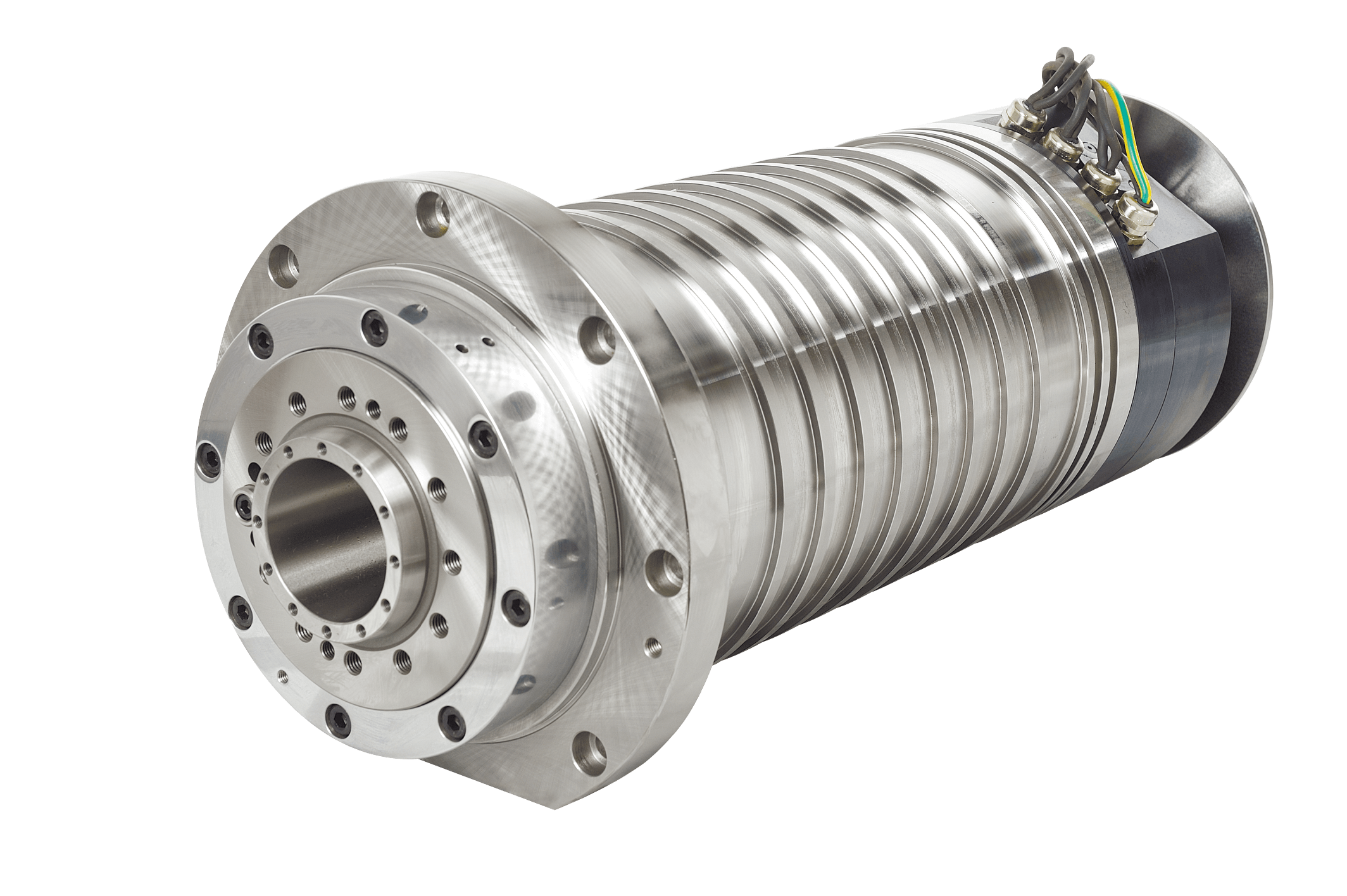

Motorized Spindle (Turning) 車床內藏式主軸

★ Features ★ - High Precision, High Efficiency - High Dynamic Rotary Accuracy - Balancing Adjustment within G1, Low Vibration - Modularized Easily - Thermal Displacement, High Stability - Short Housing Length, Low Inertia - High Motor Power, High Moments of Inertia ★ Specification ★ Housing: OD185~340mm Max. Speed: 4000~6000rpm Power: 11~22kW Torque: 74.9~477.5Nm ★ Customization ★ Customized spindle specifications are available. Welcome to contact us for your spindle solutions. ★ 主軸特色 ★ - 加工精度高、加工效率高 - 動態迴轉精度高 - 平衡校正G1以內，低振動 - 容易模組化 - 熱變位小，穩定性高 - 整機高度短，慣性小 - 主軸功率高，轉動慣量大 ★ 基本規格 ★ 本體外徑: OD185~340mm 最高轉速: 4000~6000rpm 馬達功率: 11~22kW 馬達扭力: 74.9~477.5Nm

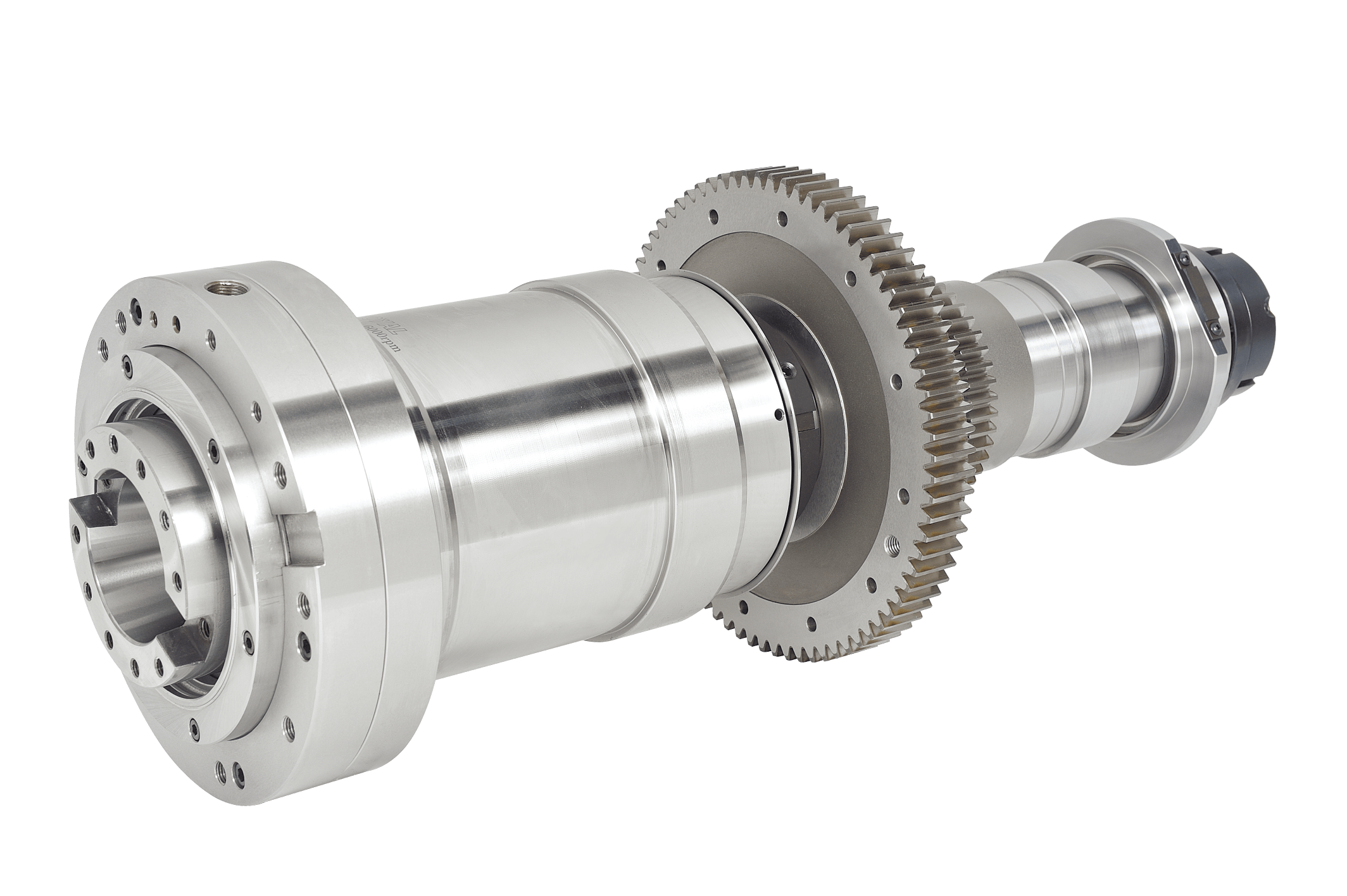

Gear-Drive Spindle (Milling) 銑床齒輪式主軸

★ Features ★ - High Torque Transmitation - High Cutting Efficiency ★ Specification ★ Housing: OD150~190mm Speed: 8000rpm ★ Customization ★ Customized spindle specifications are available. Welcome to contact us for your spindle solutions. ★ 主軸特色 ★ - 傳遞扭力大 - 切削效率高 ★ 基本規格 ★ 本體外徑: OD150~190mm 最高轉速: 8000rpm

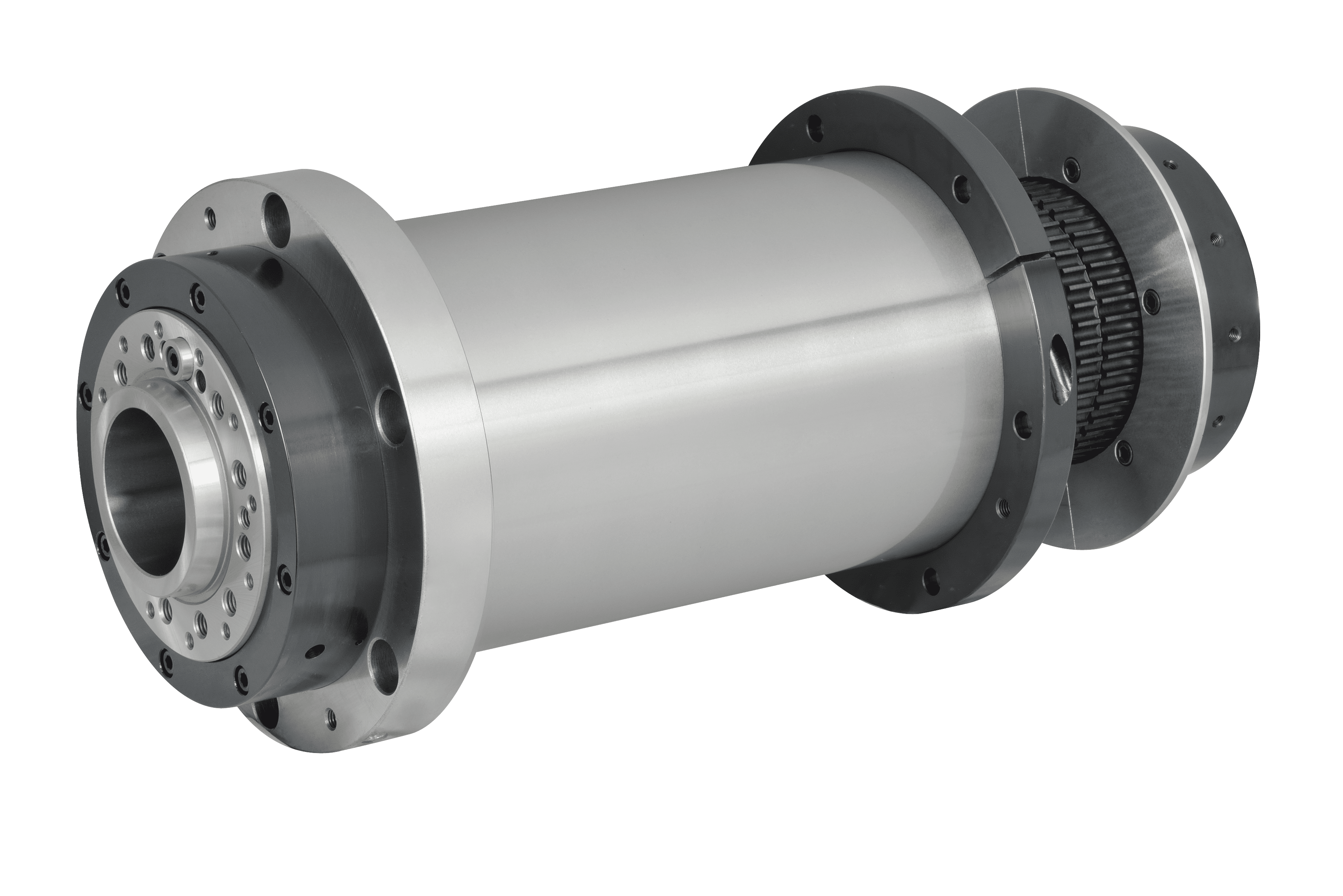

Belt-Drive Spindle (Turning) 車床皮帶式主軸

★ Features ★ - High Dynamic Rotary Accuracy - High Axial & Radial Rigidity - Stable Thermal Temperature ★ Specification ★ Housing: OD150~400mm Max. Speed: 1000~8000rpm ★ Customization ★ Customized spindle specifications are available. Welcome to contact us for your spindle solutions. ★ 主軸特色 ★ - 動態迴轉精度高 - 軸徑向剛性高 - 主軸熱溫昇穩定 ★ 基本規格 ★ 本體外徑: OD150~400mm 最高轉速: 1000~8000rpm

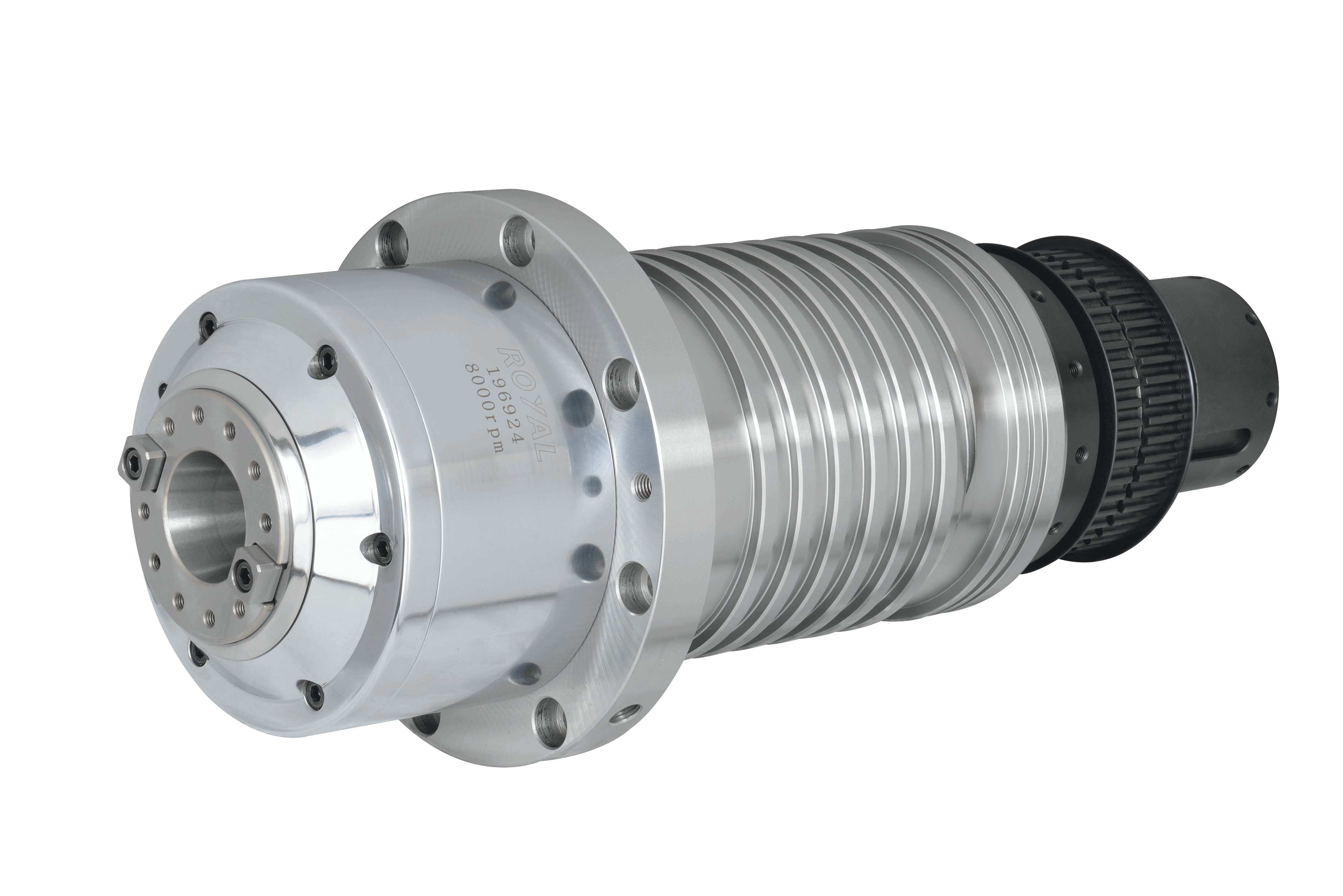

Belt-Drive Spindle (Milling) 銑床皮帶式主軸

★ Features ★ - Complete Taper Hole, High Precision & Rigidity - Easily Repair, Simple Maintenance ★ Specification ★ Housing: OD100~200mm Max. Speed: 8000~15000rpm ★ Customization ★ Customized spindle specifications are available. Welcome to contact us for your spindle solutions. ★ 主軸特色 ★ - 錐孔完整，精度及剛性高 - 維修容易，簡易保養 ★ 基本規格 ★ 本體外徑: OD100~200mm 最高轉速: 8000~15000rpm

Learn more about ROYAL

Royal Precision Tools Corporation has specialized in high precision machine tool spindles since 2003 in Taichung, Taiwan. Our comprehensive product range of spindles are well deployed in various machinery types as milling, turning, mill-turn, multi-spindle, tapping and grinding. With professional competencies of R&D, designing, manufacturing, assembling and repairing, Royal has won outstanding recognition in the machinery tools industry along the way. Welcome to contact us for your own spindle solutions. 自西元2003年於臺灣成立迄今，羅翌科技專精於工具機精密主軸的研發、設計、製造、組裝、檢測及維修等一站式技術服務，研發製造各式內藏、直結、皮帶及齒輪式主軸，應用於各式工具機種類，包括銑床、車床、磨床、銑車、多軸機及鑽孔攻牙機，羅翌主軸產品在精度及穩定上皆贏得國內外客戶品質認可及良好口碑。 羅翌提供客製化主軸研發設計及製造，歡迎洽詢其他規格需求。

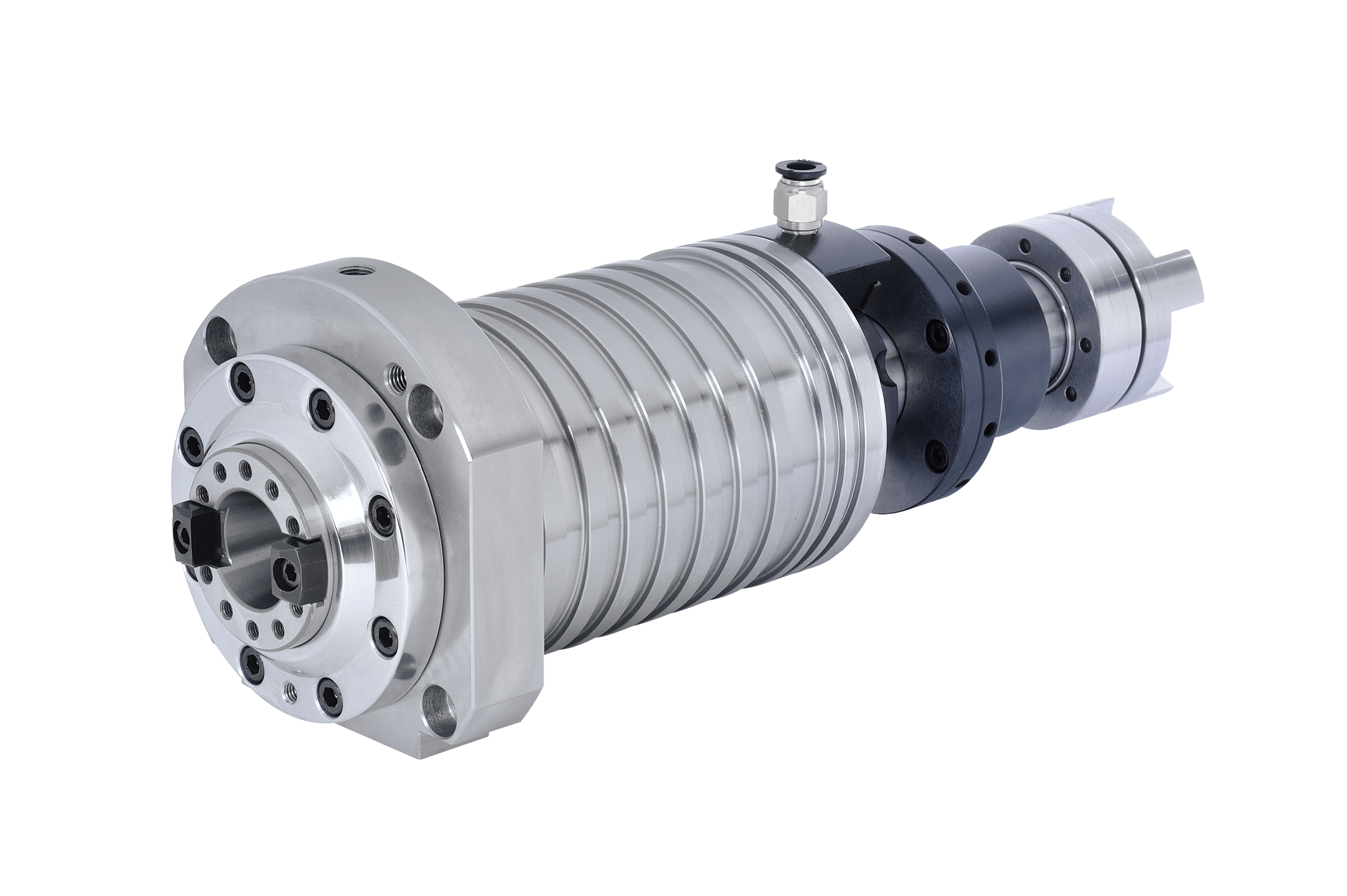

Direct-Drive Spindle (Tapping) 鑽孔攻牙直結式主軸

★ Features ★ - High Dynamic Rotary Accuracy - High Precision, Low Vibration - Same Flange Dimension, High Adaptability ★ Specification ★ Housing: OD100mm Max. Speed: 24000rpm ★ Customization ★ Customized spindle specifications are available. Welcome to contact us for your spindle solutions. ★ 主軸特色 ★ - 動態迴轉精度高 - 高精度、低振動 - 法蘭介面相同，高互換性 ★ 基本規格 ★ 本體外徑: OD100mm 最高轉速: 24000rpm

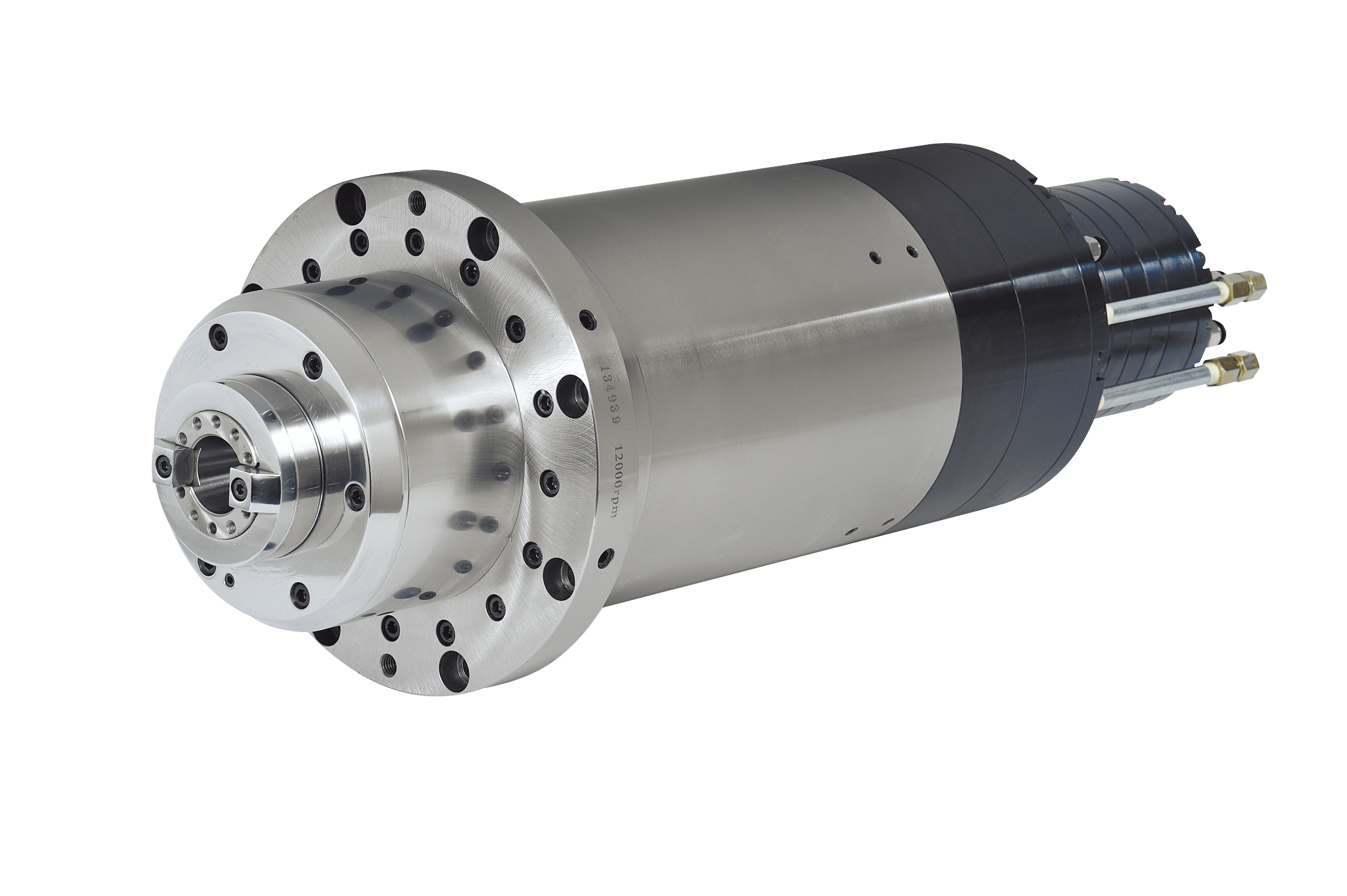

Motorized Spindle (Milling) 銑床內藏式主軸

★ Features ★ - High Precision, High Efficiency - High Dynamic Rotary Accuracy - Balancing Adjustment within G1, Low Vibration - Modularized Easily - Thermal Displacement, High Stability - Short Housing Length, Low Inertia - High Motor Power, High Moments of Inertia ★ Specification ★ Housing: OD120~310mm Max. Speed: 10000~30000rpm Power: 7.5~26kW Torque: 6~305Nm ★ Customization ★ Customized spindle specifications are available. Welcome to contact us for your spindle solutions. ★ 主軸特色 ★ - 加工精度高、加工效率高 - 動態迴轉精度高 - 平衡校正G1以內，低振動 - 容易模組化 - 熱變位小，穩定性高 - 整機高度短，慣性小 - 主軸功率高，轉動慣量大 ★ 基本規格 ★ 本體外徑: OD120~310mm 最高轉速: 10000~30000rpm 馬達功率: 7.5~26kW 馬達扭力: 6~305Nm

Direct-Drive Spindle (Milling) 銑床直結式主軸

★ Features ★ - High Dynamic Rotary Accuracy - High Precision, Low Vibration - Same Flange Dimension, High Adaptability ★ Specification ★ Housing: OD100~200mm Max. Speed: 10000~24000rpm ★ Customization ★ Customized spindle specifications are available. Welcome to contact us for your spindle solutions. ★ 主軸特色 ★ - 動態迴轉精度高 - 高精度、低振動 - 法蘭介面相同，高互換性 ★ 基本規格 ★ 本體外徑: OD100~200mm 最高轉速: 10000~24000rpm
