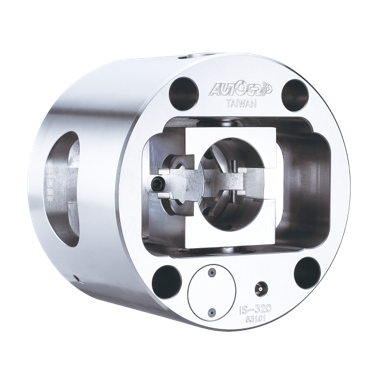

Power Indexing Chuck(IS)
* Indexing operates during the spindle rotation, can perform a quick change between multiple working axles.
* All parts of chuck hardened, ground and lubricated directly.
* Sealed against swarf, chips and coolant.
* High rigidity and high repeatability precision.
* Unique indexing system and hydraulic system, with pressure detection device in chuck, high reliability.
End stop Collet Chuck(CBE)

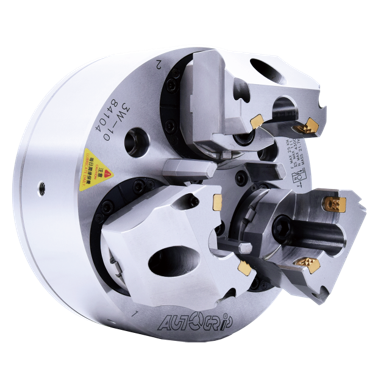

Swing type three-jaw Chuck(3W)
3W series are special purpose power chucks with innovative ball lock design for gripping tapered casting parts, with self-centering function. 3W can grip the work piece in radial direction and then pull down simultaneously. Gripping on forging or casting part with taper up to 20°, Jaw equalizing: 5° Max. Anti-dust , seal proof and easy to maintain.
3W is a power chuck with self-centering function Grip the work piece in radial direction and then pull down simultaneously. Gripping on forging or casting part with taper up to 20° Jaw equalizing: 5°Max. Anti-dust and Seal proof for cutting fluid, easy to maintain. The 3W power chuck offers an optional on/off feature which allows an easy change from centralizing to compensating (3W-C). 3W-C can offered centralizing and compensating function.
*Swing and grasp the workpiece with three jaws. (3W is automatically positioned to the center type)
*The three jaw chuck is suitable for such materials as the casting and forging process.
*The three-jaw chuck is suitable for heavy machining.
*Seal proof for dust and cutting fluid, it is more convenient when maintenance.
*Swing parts are to heat treatment hardened and ground for steel, in order to improve products service life.
*Soft jaw and Gripper are optional.* The type of the gripper is selected according to the work-piece conditions.
*The three jaw chuck can according to different processing requirements, O.D. Gripping and I.D. Gripping can be interchanged.
Catalog-Pull Lock Power Chuck(3U-218)
AUTOGRIP Machinery
At AUTOGRIP Machinery, we are committed to innovation and excellence in the realm of CNC lathe chuck products. Our passion for development and customization is matched only by our dedication to incorporating cutting-edge equipment and technologies across the spectrum of our operations, including research and development, production, quality control, and sales.
Our diverse range of CNC machine chuck products is meticulously designed to meet the demands of various machinery applications, including lathes, milling machines, grinding machines, and specialized equipment. We understand the critical importance of workpiece clamping and strive to deliver the most effective solutions and services to our clients.
Catalog-Pull Down Power Chuck & Compact style Rotary Hydraulic Cylinder with Air Connection and Safety Device(3D-08 & RE-A)

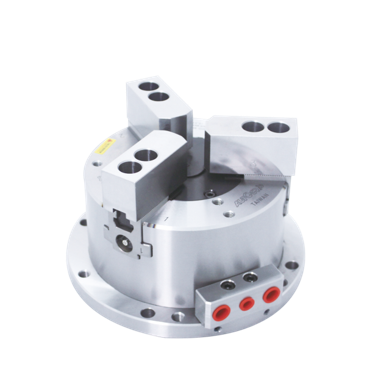

Stationary Chuck(SP)
* Build-in hydraulic cylinder; it can also work with lock valve and be driven by air pressure.
* With small thru-hole and suits for long bar workpiece processing.
* Easy to install. Installing the tubes and then operating.
* Thin and compact design. Use standard soft jaws or standard hard jaws.
* Can work together with multi-plate.
Catalog-Large Thru-Hole Air Chuck(AP)

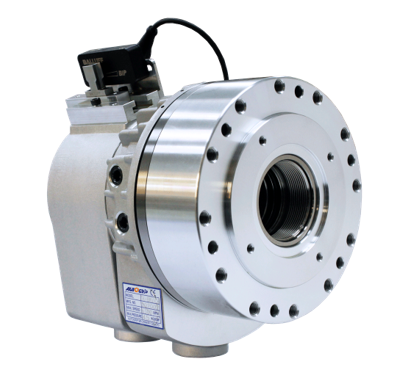

TK& Linear Position Sensor
All series of rotary cylinders are optional
* Whole stroke position montoring.
* Position setup by teach-in function.
* No more manual adjustion is required as the case of proximity switch.
* Suitable for Cramped for space of vertical lathe or sub-spindle .
* Save machine idle time .
TAIWAN EXCELLENCE 2018
Catalog-Power Indexing Chuck(IS)
Catalog-Single Slide Facing Head(FA)
Catalog-Stationary Chuck(SP)
Catalog-Power Chuck for Vertical Lathe(3V)
Draw Collet Chuck(CB)
Draw Collet Chuck
* DRAW type collet used mainly on turning, CNC, special purpose machines , ect.
* High clamping accuracy, high speed and high rigidity.
* The installation is the same as “Thru-hole power chuck” and they are replaceable with each other.
* This is a completely sealed design, which prevents coolant and chips from entering the spindle.
-------------------------------
Rubber Grip Collet
* Rubber grip collet for push type or draw type collet chucks.
* Full griping area: high rigidity, more gripping force. Gripping smoothly: prevent to damage the workpiece.
* More accurate than standard spring collets. Accuracy: With customized rubber grip collet, the accuracy can reach ±10μm
* Grip Range: ±0.5mm
* Quick change and easy.
* Dust-proof and swarf-proof design.

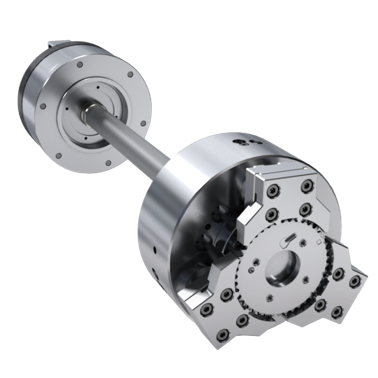

Pull Down Power Chuck & Compact style Rotary Hydraulic Cylinder with Air Connection and Safety Device(3D-08 & RE-A)
Pull Down Power Chuck(3D)
* Radial clamp and axial pull down at the same time, keep the workpiece attaching close to the base surface of the chuck.
* Almost no workpiece uplifting displacement.
* The body and the cylinder pull-down mechanism are heat-treated and fine boring, which guarantee the clamping precision and durableness.
* Airtight pressure detect function is optional.
------------------------------<br/>
Compact style Rotary Hydraulic Cylinder with Air Connection and Safety Device(RE-A)
* For short form, light weight and high speed rotary cylinder. To allow compressed air to be feed from the rear end of the distributor through the rotating union, suitable for vertical lathe.
* Built-in safety check valves, pressure relief valves and proximity sensor.
* Can screw it from the rear end of the cylinder when mounting.
Catalog-TK& Linear Position Sensor
End stop Collet Chuck(CBE)
End stop Collet Chuck
* End stop clamping.
* With backgauge block mechanism, positioning and the length control of the workpiece can be more precise.
* Backgauge block and cover are interchangeable. The chip-proof function can also be achieved.
---------------------------------------------------------------
Rubber Grip Collet
* Rubber grip collet for push type or draw type collet chucks.
* Full griping area: high rigidity, more gripping force. Gripping smoothly: prevent to damage the workpiece.
* More accurate than standard spring collets. Accuracy: With customized rubber grip collet, the accuracy can reach ±10μm
* Grip Range: ±0.5mm
* Quick change and easy.
* Dust-proof and swarf-proof design.
Brand New Upgrade! Gripping Force Sensor(GFS-100)
Catalog-Double Slide Facing Head(FD)

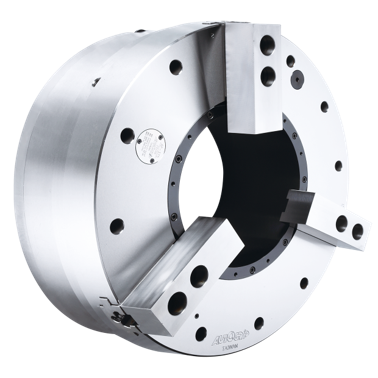

Large Thru-Hole Air Chuck(AP)
* Large through-hole 3-jaw power chuck with build in air cylinder.
* With build-in “pressure detection” device in chuck which can check the pressure is lowered rapidly within the chuck, guarantee to the security of operating.
* Patented air supply system, it is easy to install and maintain. No abrasion issue of traditional sealed ring. Maintenance cost and time can be saved.
* Patent numbers :
Germany : 20.2011.101.818.4 / 20.2012.102.498.5
Japan : 3169457 / 3178706
European Union : EP 2517822 B1
Italy : PAT.NO.0000278076
China : ZL 2011 2 0141324.9
ZL 2012 2 0274549.6
Taiwan : M440159 / M415011
US : US8770222 B2
Catalog-Swing type three-jaw Chuck(3W)
AUTOGRIP Machinery
Established in 1989, AUTOGRIP Machinery specializes in manufacturing precision Power Chucks, Rotary Cylinders, Collet Chucks, Facing Heads, and Clamping Series products.
Our pursuit of high rigidity and precision reflects in all of our product lines. From standard to customized products, from lathe, milling, to special purpose machines, Autogrip is always dedicated to provide the best automatic clamping solutions and create highest value for customers.
Located in Taiwan, our 20,000-square-meter modern facility embodies our commitment to deliver world-class quality service. Through continuous innovation, we offering tailor-made CNC chuck solutions and welcoming OEM/ODM orders. Our product range includes power chucks up to 2000mm and as well as a range of special chucks, clamps, rotary cylinders, and accessories.
Autogrip is proud to be a Taiwanese brand and our products are known for their durability, and precision. We adhere to the core values of integrity, speed, and flexibility to meet customer needs and aim to become your most trusted partners on workholding.

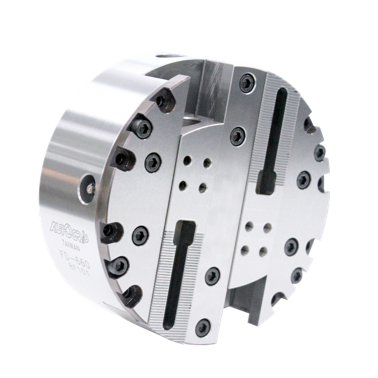

Double Slide Facing Head(FD)
* Feed mechanism is Helical Gear Rack, with steady feed speed. Simple adjustment for feed speed and stroke.
* Matching surfaces of all parts hardened, grounding and lubricated directly. With rigidity and durability.
* Suitable for using with RS type cylinder.
* For precision processes, Helical Gear Rack type facing heads are suitable for using with electro servo and ball screw mechanism.
Single Slide Facing Head(FA)
* Feed mechanism is Helical Gear Rack, with steady feed speed. Simple adjustment for feed speed and stroke.
* Matching surfaces of all parts hardened, grounding and lubricated directly. With rigidity and durability.
* Stopper accurancy: ±0.03mm.
* Suitable for using with RS type cylinder.
* For precision processes, Helical Gear Rack type facing heads are suitable for using with electro servo and ball screw mechanism.
AUTOGRIP Machinery
佳賀-數位工廠製程30sec.mp4

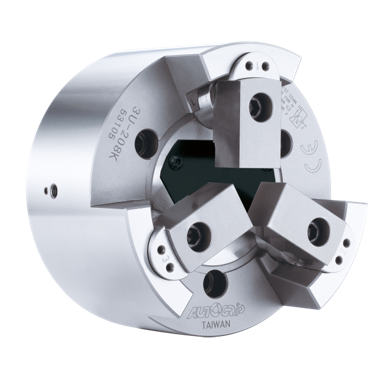

Pull Lock Power Chuck(3U-218)
* Pin-Arbor Draw Down type 3-jaw thru-hole power chuck.
* High radial gripping force and high accuracy.
* Suitable for heavy machining.
TAIWAN EXCELL EN
Catalog-Draw Collet Chuck(CB)

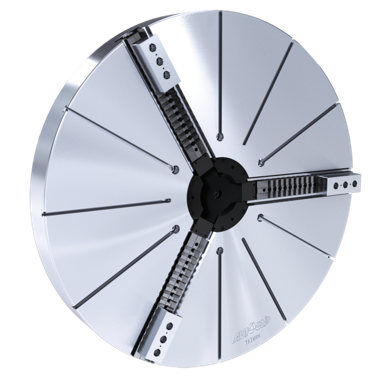

Power Chuck for Vertical Lathe(3V)
* WEDGE-HOOK type 3-jaw high speed power chuck.
* Sealed against swarf, chips and coolant, suitable for vertical lathe.
* For models above type 40, sealed against swarf, chips and coolant, suitable for vertical lathe.
